Propane pressure regulator HP 400for compressed airfor gasheated gas
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air, for gas, for inert gases, for oxygen, for nitrogen, heated gas, for sour gas, propane, for CO2, for hydrogen, for acetylene, for natural gas, for CNG
- Technology
- diaphragm
- Number of stages
- single-stage
- Material
- chrome-plated brass, stainless steel
- Applications
- industrial, for medical applications, for analytical instruments, high-purity, for chromatography, laboratory
- Other characteristics
- compact, with pressure gauge, high-purity
- Pressure
Max.: 40 bar
(580.15 psi)Min.: 0 bar
(0 psi)- Orifice diameter
0.25 in
- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description

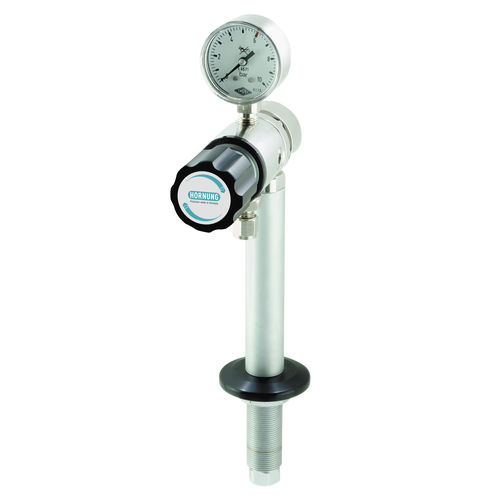

The HP 400 is a point of use regulator for bench (laboratory furniture) mounting.
The regulator is mounted on a table column for reducing line pressure to working pressure as a second-stage.
As a standard configuration the point of use regulator will be supplied with shut-off valve and gauge for indicating working pressure.
Options are specific inlet- and outlet connections or a metering valve fitted to the outlet of HP 400.
Especially for gases with high requirements on purity up to 6.0.
Our special cleaning system for the HP series also guarantees the use for ECD applications.
