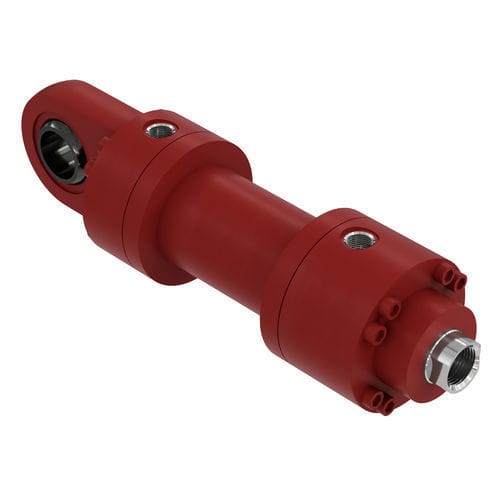

Round cylinder H250CO serieshydraulicpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Norms
- ISO 6022, DIN 24333
- Other characteristics
- round
- Bore
Min.: 50 mm
(1.97 in)Max.: 320 mm
(12.6 in)- Pressure
Min.: 50 bar
(725.19 psi)Max.: 250 bar
(3,625.94 psi)- Rod diameter
Min.: 32 mm
(1 in)Max.: 220 mm
(9 in)- Force
Min.: 580 daN
Max.: 201,062 daN
- Speed
Min.: 0.08 m/s
(0.26 ft/s)Max.: 0.38 m/s
(1.25 ft/s)- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 240 °C
(464 °F)
Description
H250 Co cylinders are engineered in a modular system. All mounting types with the exception of the type "trunnion" are based upon one basic form and are built by screwing mounting components. Different piston rod ends can be combined with every mounting type.
This cylinder can be used under the most severe conditions because of its construction design, its threaded cylindrical design, its sufficiently dimensioned guide lengths at the piston rod, as well as its heavy duty seals.
- Double acting
- ISO 6022/DIN 24333 Standard
- Working pressure: 250 bar
- Bores Ø50 ... 320 mm
