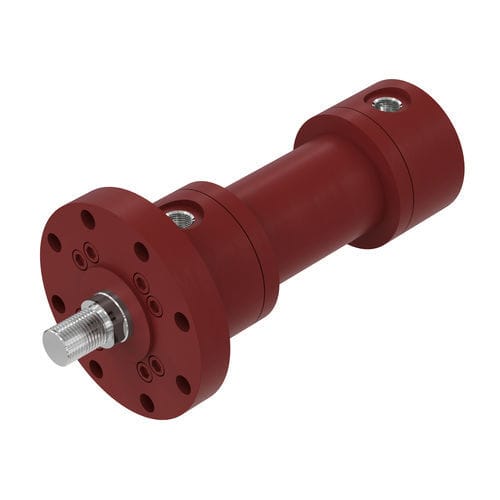

Round cylinder R160M serieshydraulicpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Norms
- ISO 6020, DIN 24333
- Other characteristics
- round
- Stroke
Max.: 115 mm
(4.528 in)Min.: 40 mm
(1.575 in)- Bore
Max.: 200 mm
(7.87 in)Min.: 25 mm
(0.98 in)- Pressure
Max.: 160 bar
(2,320.6 psi)Min.: 30 bar
(435.11 psi)- Rod diameter
Max.: 140 mm
(6 in)Min.: 14 mm
(1 in)- Force
Max.: 50,265 daN
Min.: 70 daN
- Speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0 m/s
(0 ft/s)0.5 m/s
(1.64 ft/s)- Operating Temperature
Max.: 240 °C
(464 °F)Min.: -20 °C
(-4 °F)
Description
Modular round cylinder.
Fully configurable, thanks to a multitude of mounting and options.
Complying with ISO 6020/1 - DIN 24333.
- Double acting
- Standard ISO 6020/1
- Working pressure: 160 bar
- Bores Ø25 ... 200 mm
