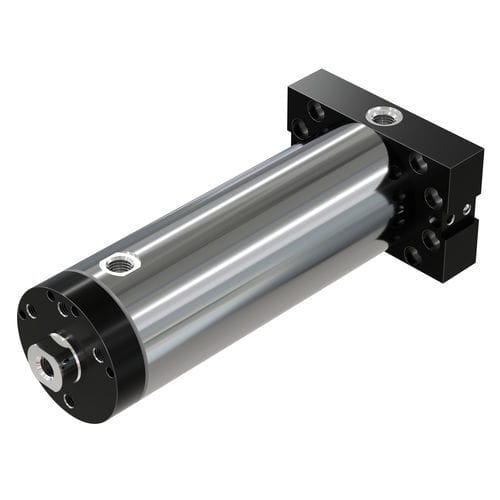

Guide cylinder ZAF series

hydraulicdouble-actingfor die-casting applications

63 mm, 80 mm, 100 mm, 125 mm, 140 mm
(2.48 in, 3.15 in, 3.94 in, 4.92 in, 5.51 in)

Max.: 160 bar
(2,320.6 psi)

Min.: 80 bar
(1,160.3 psi)

40 mm, 50 mm, 60 mm, 80 mm, 90 mm
(2 in, 2 in, 2 in, 3 in, 4 in)

Max.: 24,630 daN

Min.: 1,488 daN

Max.: 0.5 m/s
(1.64 ft/s)

Min.: 0 m/s
(0 ft/s)

Max.: 240 °C
(464 °F)

Min.: -20 °C
(-4 °F)
