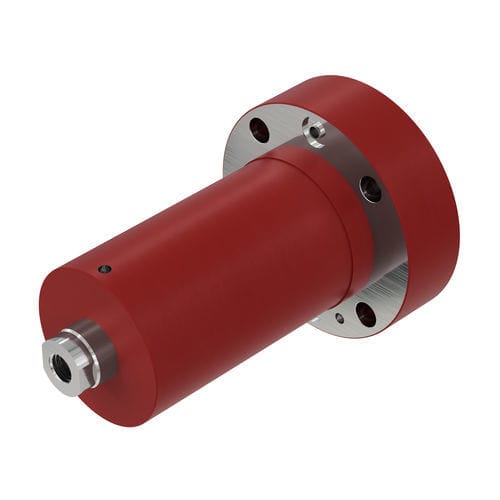

Round cylinder VDF serieshydraulicdouble-actingprecision
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Configuration
- double-acting
- Other characteristics
- precision, round
- Stroke
Max.: 330 mm
(12.992 in)Min.: 210 mm
(8.268 in)- Bore
Max.: 125 mm
(4.92 in)Min.: 25 mm
(0.98 in)- Pressure
Max.: 250 bar
(3,625.94 psi)Min.: 80 bar
(1,160.3 psi)- Rod diameter
Max.: 80 mm
(3 in)Min.: 16 mm
(1 in)- Force
Max.: 30,665 daN
Min.: 232 daN
- Speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0 m/s
(0 ft/s)- Operating Temperature
Max.: 240 °C
(464 °F)Min.: -20 °C
(-4 °F)
Description
Precision as close to expectations.
HPS offers a range of round cylinders with several mountings and power supplies.
A neat design and high quality manufacturing guarantee a long service life and optimum profitability.
Catalogs
No catalogs are available for this product.
See all of HPS International‘s catalogsOther HPS International products
Round Cylinders
