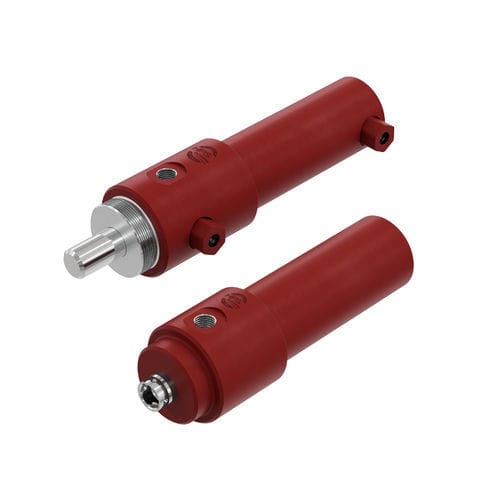

Round cylinder HM125 serieshydraulicpistonwith piston rod
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston, with piston rod, double-rod
- Other characteristics
- compact, round
- Stroke
Min.: 25 mm
(0.984 in)Max.: 200 mm
(7.874 in)- Bore
Min.: 12 mm
(0.47 in)Max.: 200 mm
(7.87 in)- Pressure
Min.: 20 bar
(290.08 psi)Max.: 125 bar
(1,812.97 psi)- Rod diameter
Min.: 6 mm
(0 in)Max.: 140 mm
(6 in)- Force
Min.: 17 daN
Max.: 39,269 daN
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 0.5 m/s
(1.64 ft/s)- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
Working Pressure: 125 bar
Bores: Ø12 to Ø200 mm
Stroke on request
HM125 cylinders are designed as screwed, partially welded, round cylinders.
They are available as single rod or double rod cylinders in all eight mounting types.
They can be installed perfectly, even under the most difficult conditions due to their slim, compact design and their short overall length. The close gradation of the piston diameters from 12 to 200 mm ensures high flexibility.
