- Hydraulics - Pneumatics
- Valve
- Lever valve
- Humphrey Products

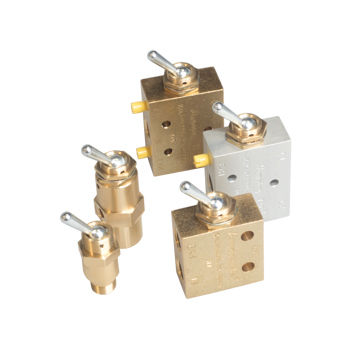

Lever valve TAC Miniature Toggle Valvespneumaticmanualfor control
Add to favorites
Compare this product
Characteristics
- Operation
- lever, pneumatic, manual
- Function
- for control, blocking, diverter, selector, pneumatic pressure-control
- Body
- miniature
- Applications
- for industrial applications, industrial, for process applications, for pneumatic cylinders, clamp, OEM, cylinder, holding
- Number of channels
- 3-way, 2-way, 4-way
- Other characteristics
- compact, high-performance, normally closed, normally open, heavy-duty, rugged, with lockable toggle, logic function, bistable
- Pressure
Min.: 0 psi
Max.: 125 psi
- Temperature
Min.: -20 °F
(-29 °C)Max.: 180 °F
(82 °C)
Description
TAC Miniature Toggle Valves are miniature pneumatic 2, 3 and 4-way valves available in 10-32 UNF and 1/8 PIPE sizes. Compact and rugged, TAC Toggle valves provide excellent flow, and are designed for attractive panel-mount signaling or cylinder control, leaving pneumatic plumbing, tubing and venting contained underside. Available in Detented and Spring Return models.
Catalogs
No catalogs are available for this product.
See all of Humphrey Products‘s catalogsOther Humphrey Products products
Pneumatic Logic - TAC System
