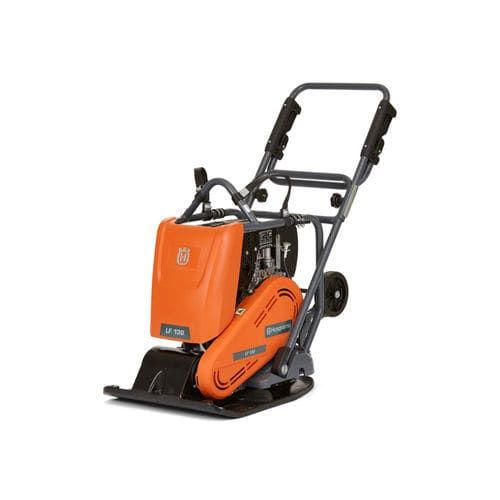

Forward travel vibratory plate LF 130 LT

compacting

Product description
LF 130 LT is a heavy, fast-operating forward plate compactor designed for reliable compaction of thin to medium layers of granular soils. The unique plate geometry and optimised operating speed deliver fast, even compaction with high production rates. The exclusive patented low-vibration handle reduces operator exposure to vibration (< 2 m/s²) while the compact frame with foldable handle, lifting eye and standard fork lifting straps simplify transport and storage.

Features

• Forward plate compactor for thin to medium layers of granular soils.
• Unique plate shape and optimised speed for efficient, high-rate compaction.
• Patented low-vibration handle reducing vibration levels to < 2 m/s².
• Compact design with foldable handle, lifting eye and fork lifting straps as standard.
• Optional wheel kit for transport and optional block paving kit to protect paved surfaces.

Benefits

• Extended productive work periods due to low operator vibration exposure.
• Easy handling and transport with foldable handle and lifting provisions.
• Protection for paving blocks when using the optional block paving kit.

Top specifications
Power source: Diesel
Plate width: 500 mm
Weight (complete product w/o side packed articles): 142 kg
Centrifugal force: 20 kN
Art nr: 967 89 69‑01

Technical specifications

• Model: LF 130 LT
• Plate width: 500 mm
• Weight (complete product w/o side packed articles): 142 kg
• Centrifugal force: 20 kN
• Power source: Diesel
• Patented low-vibration handle — vibration levels < 2 m/s²
• Foldable handle for transportation and storage
• Lifting eye and fork lifting straps (standard)
• Optional wheel kit for easy transport
• Optional block paving kit for paving protection
• Article number: 967 89 69‑01
