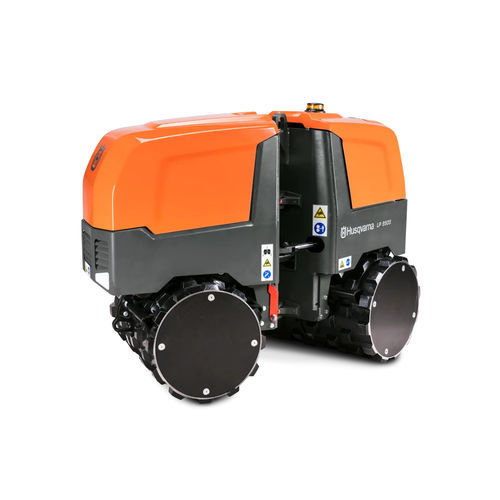

Trench compactor road roller LP 9505

articulated

Product description
The highly productive Husqvarna LP 9505 articulated trench compactor delivers a smooth, compacted surface which doesn't dig up soil when turning. Due to the high operating weight and excellent traction, it is suitable for all kinds of soils (dry or wet) and particularly suited for cohesive materials such as clay and silt. The fuel-efficient Kubota engine provides class-leading power for a full day of uninterrupted work and the radio remote control offers flexibility, improved ergonomics and safer working conditions. Servicing is quick and easy with all service points clearly marked and easily accessed under the hoods.

Key features

• Radio remote control for flexible and ergonomic operation
• High operating weight for optimal static compaction
• Excellent traction with high and wide drum pads for slopes and wet soils
• Easy to operate – remote with large informative display for guidance and troubleshooting
• Always ready – remote control set includes two batteries (one in use, one charging in onboard charger)
• Covered drum ends to keep dirt out of wearable parts and enable sliding against trench walls
• Easy loading and transporting – single lifting point with large lifting eye, foldable transport lock for articulation joint, additional front/rear eyelets for hauling
• Powerful and fuel efficient – Kubota D1105 diesel engine and large fuel tank for full workday operation
• Stable machine thanks to width and low centre of gravity
• Serviceability – easy access to service points and clearly marked consumable parts (filters, hydraulic hoses)

Additional information
Type: articulated trench compactor. Intended application: trench compaction and cohesive soils (clay, silt). Remote system includes onboard charger functionality for spare battery. Machine designed to avoid trench wall digging when turning and to provide reliable traction on gradients.

Technical specifications

• Model: LP 9505
• Denomination / short description: TRENCH COMPACTOR LP 9505 | 850 mm | KUBOTA | ARTICULATED COMPACTOR
• Power source: Diesel
• Engine: Kubota D1105 (diesel)
• Weight (complete product without side packed articles): 1,680 kg
• Centrifugal force: 72 kN
• Drum width: 850 mm
• Suitable soils: dry or wet soils; especially cohesive materials like clay and silt
• Controls: Radio remote control with large display; comes with two batteries and onboard charger
• Service points: Easily accessible under hoods; consumables and hydraulic hoses clearly marked
• Transport: Single lifting point with large lifting eye; foldable transport lock on articulation joint; additional hauling eyelets front and rear
• Design: Articulated for trench operation; covered drum ends to protect wearable parts
• Article number: 967 95 08-01
