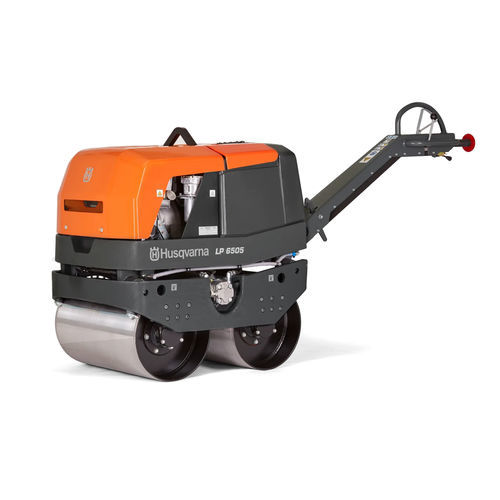

Duplex road roller LP 6505

vibratingmanual

Product overview
Husqvarna LP 6505 is a fully hydraulic duplex roller designed for compacting thin layers of granular soil and asphalt. With a centrifugal force of 22 kN and a compact, narrow-sided design, the LP 6505 enables efficient compaction close to walls and in confined spaces. The machine is fitted with a Hatz 1D42S diesel engine, an integrated hydraulic oil cooler and an ergonomic, service-friendly layout.

Key features

• Work anywhere: Compact design with high curb clearance on both sides, no overhang and narrow sides for access close to walls, posts and edges.
• Operator comfort: Vibration-damping handle with easy vibration control for simple on/off switching and extended operator shifts.
• Extended component life: Built-in hydraulic oil cooler reduces wear on hydraulic components and improves reliability in hot or heavy-duty conditions.
• Engine and monitoring: Hatz 1D42S diesel engine provides controlled fuel consumption and low emissions; includes hour meter and oil alert for maintenance planning.
• Safe handling: Hydraulic brakes with automatic braking function for easier handling and improved operational safety.
• Starter options: Manual cord and electric starter available as variant options.

Top specifications
Model: LP 6505
Brand: Husqvarna
Power source: Diesel
Engine: Hatz 1D42S diesel engine (low fuel consumption, low emissions)
Weight: 745 kg (primary configured weight); alternate variant weight shown as 765 kg
Centrifugal force: 22 kN
Article number (variant shown): 967 85 57-02

Applications & maintenance

• Typical applications: Compaction of thin asphalt layers, surface levelling of granular sub-bases, maintenance work in urban and confined sites.
• Maintenance: Regular checks of hydraulic oil temperature and level, scheduled engine service per Hatz recommendations, and inspection of vibration and brake systems to ensure consistent compaction performance.
