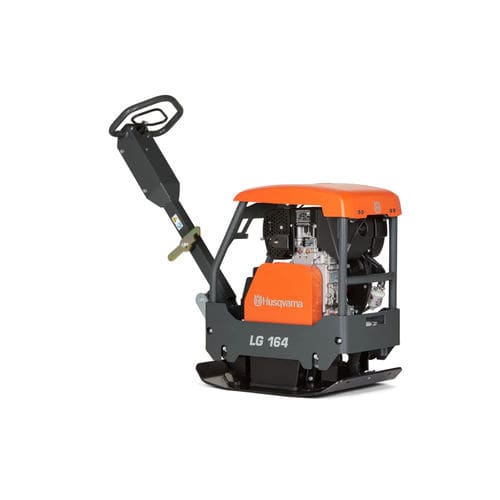

Bidirectional vibratory plate LG 164

forward travelreversible

Product description
LG 164 is a compact, lightweight reversible plate compactor designed for smaller jobs such as driveways, pathways, private house projects and narrow trenches. Optimised for thin macadam beds, it delivers nimble, responsive handling while maintaining strong compaction performance. The Hatz 1B20 diesel engine reduces fuel consumption and emissions. The bottom plate is manufactured in wear‑resistant Hardox 400 steel and components are selected to minimise vibrations.

Benefits

• Durable Hardox 400 bottom plate for extended service life
• Protected engine and transmission for easy transport and site handling
• User-friendly controls for intuitive operation
• Low handle vibration levels to reduce operator fatigue

Features

• Plates made to last: Bottom plate in Hardox® 400 steel with a design that prevents stones from jamming between plate and frame.
• Strong protection, easy transportation: Heavy‑duty steel frame shields engine and transmission; integrated lifting eye for handling and transport.
• Easy operation: Forward/reverse lever and fixed handle grip enable smooth directional changes without constant push/pull effort.
• Low handle vibration levels: Engineered components and damping reduce transmitted vibration and operator strain.

Top specifications
Power source: Diesel
Plate width: 450 mm
Weight (complete product): 170 kg
Centrifugal force: 28 kN

Technical specifications

• Model: LG 164
• Brand: Husqvarna
• Engine: Hatz 1B20 (Diesel)
• Bottom plate material: Hardox 400 steel
• Plate width: 450 mm
• Operating weight: 170 kg
• Centrifugal force: 28 kN
• Application: Driveways, pathways, private house projects, narrow trenches
• Short description: REVERSIBLE PLATE LG 164 Hatz | 450 mm
• Article number: 967 89 76‑02
