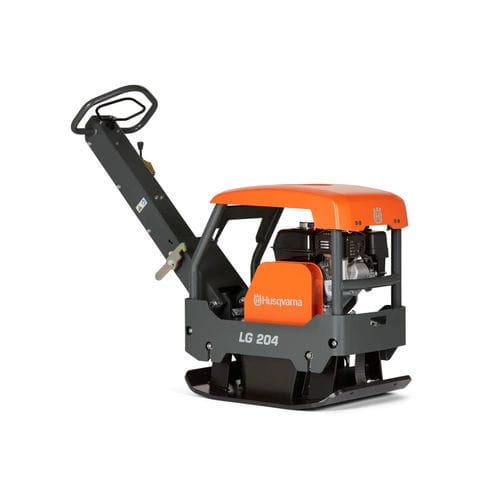

Reversible vibratory plate LG 204

gasoline enginecompacting

Product description
LG 204 is a compact, lightweight yet powerful reversible plate compactor developed for smaller jobs such as driveways, pathways, private-house projects and narrow trenches. It is suited to thin macadam beds where nimble, responsive handling is required. The Honda GX200 petrol engine provides reliable power with reduced fuel consumption and emissions. The machine is fitted with a Hardox 400 steel bottom plate to resist wear and an engineered frame to protect powertrain components.

Features

• Plates made to last: Plates manufactured from Hardox® 400 steel for high wear resistance; plate design reduces the risk of stones becoming trapped between plate and frame.
• Protection and transport: Steel frame protects engine and transmission; integrated lifting eye simplifies handling and transport.
• Simple operation: Forward/reverse lever and a fixed handle grip allow precise control on varied surfaces without continuous push/pull.
• Low handle vibrations: Mechanical design and component selection minimize vibration transmission to the handle, reducing operator strain.

Tech data (top specifications)
Power source: Petrol
Plate width: 500 mm
Weight (complete product w/o side packed articles): 211 kg
Centrifugal force: 36 kN

Technical specifications

• Model: LG 204
• Engine: Honda GX200 (petrol)
• Plate material: Hardox 400 steel (wear-resistant)
• Plate width: 500 mm
• Weight (complete product w/o side packed articles): 211 kg
• Centrifugal force: 36 kN
• Product designation: REVERSIBLE PLATE LG 204 Honda | 500 mm
• Article number (Art nr): 967 85 52-01
