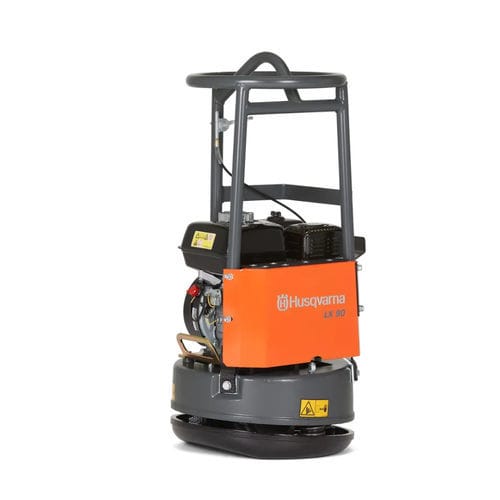

Gasoline engine vibratory plate LX 90

compacting

Product description
The Husqvarna LX 90 is a lightweight, fast-operating round plate compactor engineered for efficient compaction of sand, gravel and mixed soils. Its round plate enables smooth turning and direction changes, making it particularly suited for work in corners, manholes and trenches. It is an effective alternative to rammers and reversible plate compactors when manoeuvrability and flush compaction are required.

Key features

• Round plate geometry for easy manoeuvring and turning in confined spaces.
• Higher speed and compaction capacity compared to a standard rammer.
• Integrated lifting eye for safe transport and lowering into trenches.
• Round base allows flush compaction next to posts, pillars, guardrails and manholes.

Benefits

• Improved productivity on sand, gravel and mixed soils versus conventional rammers.
• Designed for operations in tight areas where direction changes are frequent.
• Facilitates site handling and transport with lifting provisions.
• Enables compaction adjacent to obstacles and structures without gaps.

Technical data (summary)
Model: LX 90
Power source: Petrol
Plate width: 450 mm
Weight (complete product, without side packed articles): 96 kg
Centrifugal force: 16 kN
Article number: 967 89 71‑01
Engine: Honda
