Industrial dust extractor T 7500

drydustfine dust

Overview

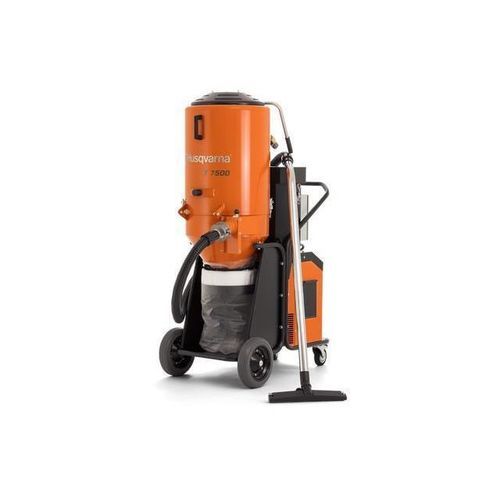

T 7500 is an industrial dust extractor designed for heavy-duty applications. It pairs with Husqvarna grinding machines (PG 820, PG 680, PG 400 - 3-phase) and is suitable for use with shavers, shot blasters and saws. The unit features a high-flow turbine motor, three-stage filtration and large-capacity HEPA H13 filters to handle fine grinding dust and demolition materials while supporting continuous operation.

Key benefits

• Efficient three-stage filtration including cyclone pre-separation and washable main filter
• Two oversized HEPA class H13 micro filters (individually tested and certified)
• Easy external pre-filter cleaning via Jet Pulse negative air pressure
• Longopac® bag hose system for dust-free bag changes
• Slim, stable chassis with non-marking tires and swivel casters for mobility
• Durable construction with corrosion-resistant clamps and welded frame
• Airflow monitoring with alerts for filter cleaning or replacement
• Hour counter for planned maintenance

Applications / Suitable for

• Matching with Husqvarna grinding machines (PG 820, PG 680, PG 400 - 3 ph)
• Use with shavers, shot blasters and saws
• Heavy-duty industrial dust extraction and demolition material handling

Top specifications (table)

• Power source: Corded
• Phases: 3 ph
• Rated input power: 5.5 kW
• Rated current: 12 A
• Weight (complete product w/o side packed articles): 206 kg

Article information
Designation: DUST EXTRACTOR T 7500 | 400 V | 3 ph | EU
Art nr: 967 66 41‑04

Technical specifications

• Power source: Corded (3-phase)
• Rated input power: 5.5 kW
• Rated current: 12 A
• Weight (complete product without side packed articles): 206 kg
• Filtration: Three-stage system with cyclone pre-separation, washable main filter and two oversized HEPA class H13 micro filters (individually tested and certified to capture 99.99% of 0.3 µm respirable fraction)
• Filter cleaning: Jet Pulse negative air pressure cleaning for pre-filters (from outside the tank)
• Dust bag system: Longopac® bag hose system for dust-free bag changes
• Mobility: Slim design, solid non-marking tires, swivel casters and hitch for attaching a separator
• Designed for: Heavy-duty industrial applications (grinding dust, demolition materials)
