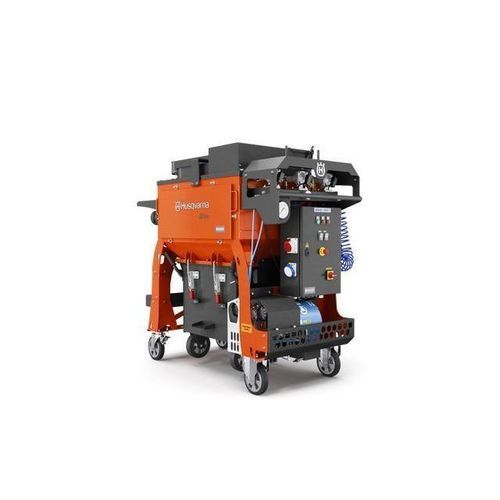

Cartridge dust collector Blastrac DC 975

pulse-jet backflowself-cleaninghigh-efficiency

Product description
The Blastrac DC 975 heavy-duty dust collection system combines power, efficiency and productivity in one durable machine. The Husqvarna Blastrac DC 975 is designed for professional contractors requiring continuous operation and high performance. It is ideally suited for use with large shot blasting, steel blasting and scarifying machines. The unit is equipped with nine M-class cartridge filters and can be fitted with an optional H14 HEPA filter kit. Standard delivery includes a dustbin kit; optional Longopac® or big bag systems are available. Filters are cleaned automatically by the pulse filter cleaning system.

Benefits / Key features

• Flexible dust handling: standard dustbin; optional Longopac® or big bag system
• Efficient automatic filter cleaning via on-board high-performance compressor with pulse cleaning
• Ergonomic single lifting point for safe and easy handling
• Nine easy-to-replace M-class cartridge filters; optional H14 HEPA filter kit available
• On-board air pistol for cleaning and maintenance

Technical data (overview)
Power source: Corded
Phases: 3 ph
Rated input power: 9 kW
Air flow: 3,510 m³/h
Rated current: 17.62 A
Weight (complete product w/o side packed articles): 521 kg
Voltage / Frequency: 400 V / 50 Hz
Product designation on data plate: DUST COLLECTOR BLASTRAC DC 975 | 400 V | 50 Hz | DUSTBIN | EU

Characteristics / Technical specifications

• Model: Blastrac DC 975
• Brand: Husqvarna
• Rated input power: 9 kW
• Air flow: 3,510 m³/h
• Rated current: 17.62 A
• Weight: 521 kg (complete product without side packed articles)
• Power source: Corded (3-phase)
• Voltage / Frequency: 400 V / 50 Hz
• Filter system: Nine M-class cartridge filters; filters are easy to replace
• Optional filtration: H14 HEPA filter kit available
• Dust handling: Dustbin kit standard; optional Longopac® system or big bag system
• Automatic pulse filter cleaning via on-board high performance compressor
• On-board air pistol for cleaning
• Ergonomic single lifting point for easy transportation
• Article number (Art nr): 970 70 52‑03
