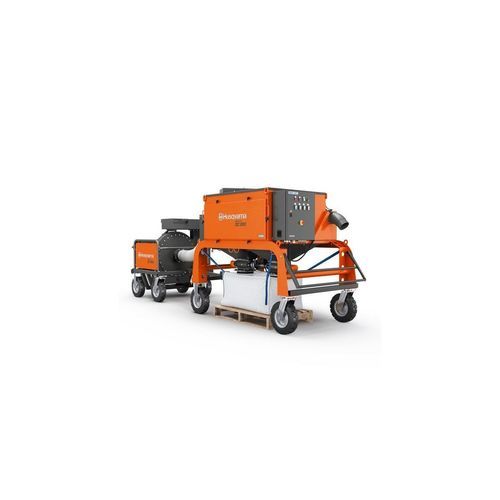

Cartridge dust collector Blastrac DC 900

pulse-jet backflowself-cleaningfor shot blasting machines

Product description
The Blastrac DC 900 dust collector is designed to connect to the Husqvarna Blastrac EBE 900V vertical steel blaster. The system consists of two separate units: a dust collection unit and a fan unit. It is fitted with 20 M-class cartridge filters and an automatic pulse filter cleaning system. Dust is captured in a single large replaceable big bag. An optional drive system improves manoeuvrability. Rotating valves disperse collected dust into the big bag during operation, allowing bag change without stopping the blaster.

Key features

• Designed to connect with Husqvarna Blastrac EBE 900V vertical steel blaster
• Two-unit configuration: dust collection unit and fan unit
• 20 M-class cartridge filters
• Automatic pulse filter cleaning for simplified maintenance
• Single large, quick-replace big bag dust collection system
• Optional drive system for improved manoeuvrability
• Rotating valves enable bag change during operation

Benefits

• Continuous operation without interruption (bag change during operation)
• High filtration capacity with easy-to-clean filters
• Fast and safe dust disposal via replaceable big bag

Technical data
Rated input power | 17 kW
Air flow | 4,000 m³/h
Weight (complete product w/o side packed articles) | 1,360 kg
Rated Current | 32 A
Power source | Corded
Phases | 3 ph
Top specifications (summary) | Corded / 3 ph / 17 kW / 4,000 m³/h

Technical specifications

• Model: Blastrac DC 900
• Power source: Corded
• Phases: 3 ph
• Rated input power: 17 kW
• Air flow: 4,000 m³/h
• Rated current: 32 A
• Voltage / Frequency example shown: 400 V | 50 Hz
• Weight (complete product without side packed articles): 1,360 kg
• Filtration: 20 M-class cartridge filters
• Filter cleaning: Automatic pulse filter cleaning system
• Dust collection: One large, easy and quick to replace big bag system
• Operation: Rotating valves enable dust dispersion into bag during operation (bag change without interrupting blasting)
• Construction: Two separate units – dust collection unit and fan unit
• Optional: Drive system available for easier manoeuvring
• Art nr: 970 69 37-01
