Cartridge dust collector Blastrac DC 2-48

pulse-jet backflowself-cleaningmobile

Product description

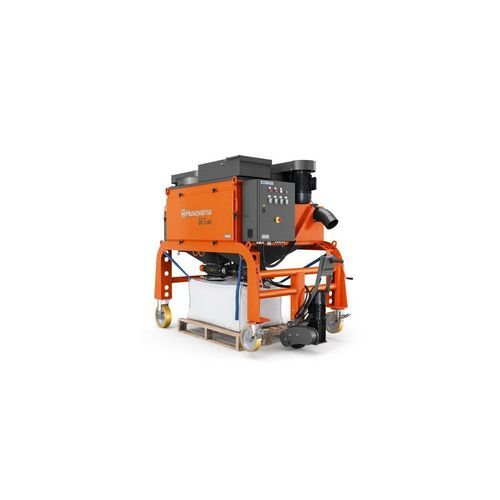

The Husqvarna Blastrac DC 2-48 dust collector is designed to connect to the Blastrac 2-48DS shot blaster for use on concrete and asphalt. Its reduced height and integrated drive system improve manoeuvrability on site. The unit is fitted with 20 M-class cartridge filters and an automatic pulse filter cleaning system. Collected dust is routed to a large, easy-to-replace big bag for fast disposal.

Benefits

• Easy and quick big bag system for fast dust removal
• Continuous operation without interruption — rotating valves disperse dust into the big bag during use
• 20 M-class cartridge filters with automatic pulse cleaning for simplified maintenance
• Improved manoeuvrability thanks to the integrated drive system

Features

• Designed to connect with Blastrac 2-48DS shot blaster
• Lower overall height and integrated drive system for better access and handling
• 20 M-class cartridge filters
• Automatic pulse filter cleaning system
• Large replaceable big bag dust collection system
• Rotating valves allow dust transfer to the big bag and enable bag change during operation

Technical specifications

• Power source: Corded
• Phases: 3 ph
• Rated input power: 18 kW
• Air flow: 4,400 m³/h
• Voltage: 400 V
• Frequency: 50 Hz
• Rated current: 32 A
• Weight (complete product w/o side packed articles): 1,107 kg
• Filter type / count: 20 M-class cartridge filters
• Filter cleaning: Automatic pulse filter cleaning system
• Dust collection: Large replaceable big bag system
• Additional: Integrated drive system for manoeuvrability; rotating valves for continuous operation and bag change
