HEPA filter dust collector S 13

pulse-jet backflowfor cutting machinesself-cleaning

Product overview

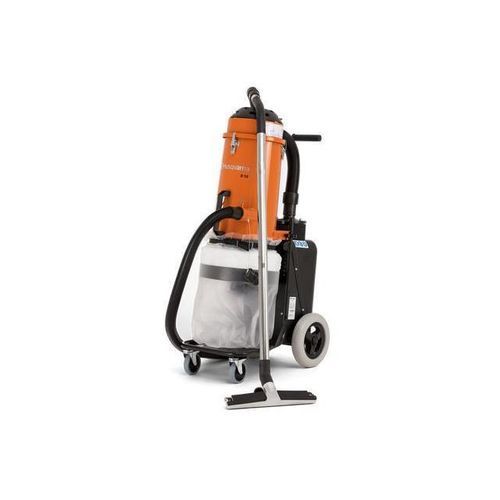

S 13 is a quiet-operating single-phase HEPA dust collector designed for use with the Husqvarna K 3000 power cutter, hand-held grinders, small 5–7” grinders, small scarifiers and drywall sanders. It is engineered for construction and industrial sites to capture a wide range of building materials and airborne dust. The unit is equipped with a tested and certified HEPA H13 filter and features Jet Pulse pre-filter cleaning and a vacuum meter for filter control.

Features

• Three-stage filtration including cyclone separation, washable main filter and HEPA H13 micro filters
• Tested and certified HEPA H13 (captures 99.99% of respirable silica dust at 0.3 µm)
• Jet Pulse pre-filter cleaning for efficient maintenance without opening the machine
• Vacuum meter / airflow monitoring to indicate filter cleaning or replacement
• Longopac® bag hose system for dust-free bag changes
• Non-marking, puncture-free wheels with front lock for stable positioning
• Durable welded frame with dust bag platform and steel handle for transport
• Suitable for demanding industrial applications requiring high suction and airflow

Technical data (summary)
Rated input power: 1.2 kW
Air flow: 165 m³/h
Weight (complete product, without side packed articles): 31 kg
Rated current: 5.2 A
Power source: Corded
Phases: 1 ph

Technical specifications

• Article number: 967 66 40-04
• HEPA H13 micro filters individually tested and certified (99.99% at 0.3 µm)
• Three-stage filtration: cyclone chamber (separates up to 95% of the heaviest dust) → washable main filter → HEPA micro filters
• Jet Pulse conical main filter cleaning system (efficient cleaning without opening the machine)
• Vacuum meter / airflow monitoring for filter control
• Longopac® bag hose system for dust-free bag changes
• Non-marking, puncture-free wheels with front lock
• Welded frame with dust bag platform and durable steel handle for transport
• Intended machine matches: power cutter K 3000, hand-held grinders, small 5–7” grinders, small scarifiers, drywall sanders
