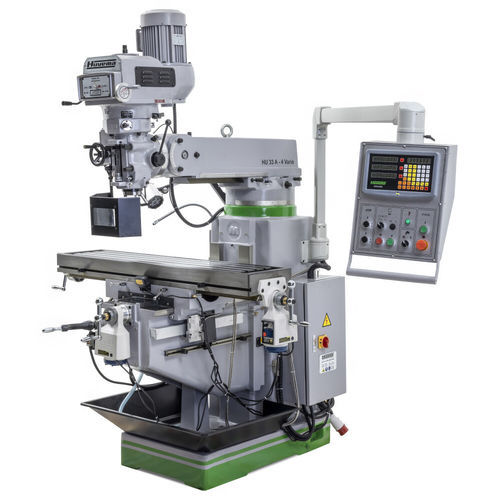

3-axis milling machine HU 33 A-4 Vario DRO

verticaluniversalwith swiveling spindle

Overview Universal tower (column) milling machine designed for precise execution of diverse milling operations. Reinforced column ribs and double 55° dovetail guideways on the Y and Z axes ensure rigidity and accurate adjustment. Equipped with ISO40 spindle, variable speed, SINO DRO and a swiveling milling head.

Key features

• ISO40 spindle (SK40 / DIN2080)
• SINO DRO from the Huvema brand
• Double 55° dovetail guideways on Y and Z axes
• Table size: 1370 x 305 mm
• Automatic feed for X and Y axes and variable spindle speed
• 90° swiveling milling head with fixed tilting positions
• Coolant system, oil collecting plate and spindle guard
• Swing-arm control panel and vertical lifting motor

Applications Suited to professional workshops, industrial production shops and vocational training environments where flexible vertical/horizontal milling operations are required.

Technical specifications

• Model: HU 33 A-4 Vario DRO
• Manufacturer/Brand: Huvema
• EAN / Barcode: 8718242584456
• Article number: 30774
• Power: 5.2 kW
• Vertical spindle speed: 66–4540 rpm
• Voltage: 400 V
• Weight (machine): 1650 kg
• Machine dimensions (L × W × H): 2080 × 1810 × 2390 mm
• Packaging dimensions: 1566 × 1650 × 2080 mm
• Volumetric weight: 30000
• Net weight: 1400
• Gross weight: 1400
• Motor power (vertical): 3.7 kW
• Vertical spindle travel: 127 mm
• Vertical spindle feed: Auto 0.04 / 0.08 / 0.15 mm/rev & manual
• Spindle diameter: 100 mm
• Vertical spindle holder: SK40 (DIN2080 ISO 40)
• Table size (L × W): 1370 × 305 mm
• Longitudinal table travel: 850 mm
• Cross table travel: 415 mm
• Vertical table travel: 355 mm
• T-slots: T16 - 3 slots - 63 mm spacing
• Ram travel: 500 mm
• Distance spindle–column: 220–750 mm
• Vertical spindle horizontal rotation: +90 / -90 °
• Vertical spindle vertical rotation: +90 / -90 °
• Vertical spindle tilt: +45 / -45 °
• HS code: 84596990
