3-axis milling machine FB 50-4 + DRO
verticalindustrialwith control panel

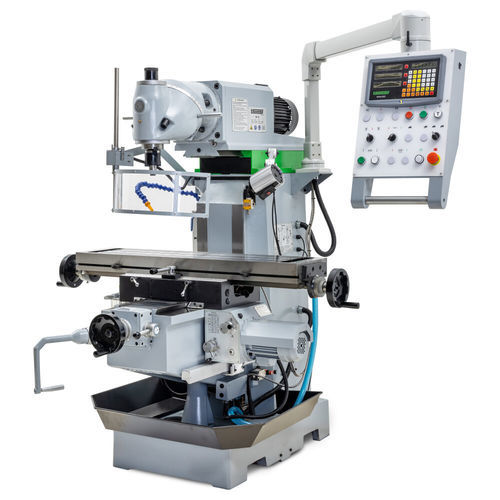

3-axis milling machine - FB 50-4 + DRO - Huvema B.V. - vertical / industrial / with control panel
3-axis milling machine - FB 50-4 + DRO - Huvema B.V. - vertical / industrial / with control panel
3-axis milling machine - FB 50-4 + DRO - Huvema B.V. - vertical / industrial / with control panel - image - 2
3-axis milling machine - FB 50-4 + DRO - Huvema B.V. - vertical / industrial / with control panel - image - 3
3-axis milling machine - FB 50-4 + DRO - Huvema B.V. - vertical / industrial / with control panel - image - 4
3-axis milling machine - FB 50-4 + DRO - Huvema B.V. - vertical / industrial / with control panel - image - 5
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Applications
industrial
Other characteristics
with control panel
X travel

600 mm
(23.62 in)

Y travel

270 mm
(10.63 in)

Z travel

420 mm
(16.54 in)

Power

2.2 kW
(2.99 hp)

Spindle speed

Max.: 1,660 rpm
(10,430.088 rad.min-1)

Min.: 45 rpm
(282.743 rad.min-1)

Description

Product overview
Knee-type industrial milling machine with hardened guide ways. Traverses in X, Y and Z; Z-axis fitted with rapid traverse. Equipped with a moveable overhead 3D head, head rotatable in two directions. Swivel control console and chip collector supplied for workshop integration.

Applications
  • Medium to heavy industrial milling, toolroom work, prototyping and component finishing.


Key features
  • Article ID: 30735
  • Machine type: Knee-type milling machine
  • Guide ways: Hardened
  • Movement: Traverse in X, Y and Z axes
  • Z-axis: Rapid traverse
  • Head: Moveable overhead 3D head, rotatable in 2 directions
  • Operator interface: Swivel control console
  • Chip handling: Chip collector
  • Number of images: 19


Technical specifications
  • Type: Industrial knee-type milling machine
  • Article ID: 30735
  • Guide ways: Hardened
  • Axes: 3-axis traverse (X, Y, Z)
  • Rapid Z-axis traverse: Yes
  • Head details: Moveable overhead 3D head, 2-direction rotation
  • Control: Swivel control console
  • Chip disposal: Chip collector


Images
  • Main product image and multiple detailed views available (19 images in total).
