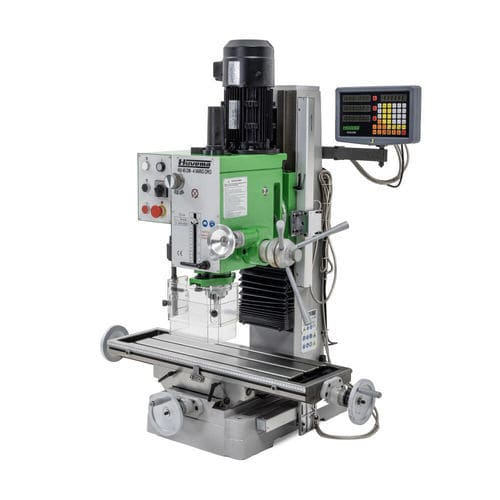

Universal milling machine HU 45 DM-4 NG DRO

with swiveling spindleprecisionheavy-duty

Product overview
The Huvema HU 45 DM-4 NG DRO is a universal gear-head milling machine equipped with a digital readout and a DIN 2080 ISO 30 spindle. It is designed for precision milling, drilling, tapping and reaming tasks, including the machining of dovetail slots. The tilting and swiveling head and dovetail guidance on the gear head provide accurate positioning for maintenance, R&D and small-series production.

Key features

• Universal gear-head milling machine for milling and drilling operations
• Integrated digital readout (DRO)
• Capable of milling dovetail slots
• Tilting and swiveling head for angled/horizontal work
• Spindle: DIN 2080 ISO 30 with ball bearings and positive spindle lock
• Two-speed motor and fine feed adjustment
• Heavy cast construction with adjustable dovetail guides on the table
• Wide table, gear drive and low noise operation

Supplied accessories

• Digital readout
• Pull rod M12
• Quick-change drill chuck 1-13 mm
• Adapter DIN 2080 ISO 30 → B16
• Restart switch & safety cutoff
• HBSK 220 protective cover
• Associated tools

Technical specifications

• Brand: Huvema
• Model: HU 45 DM-4 NG DRO
• Article number: 12089
• EAN: 8718242582858
• Spindle: DIN 2080 ISO 30
• Quick-change drill chuck: 1-13 mm
• Adapter: DIN 2080 ISO 30 → B16
• Pull rod: M12
• Motor: 2 speeds
• Construction: Heavy cast construction
• Head guidance: Dovetail guidance on the gear head
• Functions: Milling, drilling, tapping, reaming; tilting and swiveling head
