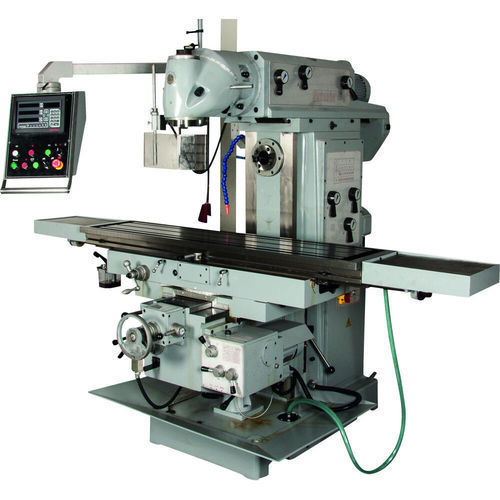

3-axis milling machine HU 50 H-4 DRO

verticaluniversalindustrial

Description
Universal milling machine with feed on all axes. The machine is equipped with a Huron head. Guided ways are adjustable. Suited for workshop fabrication and industrial applications.

Properties:

• heavy-duty construction
• vertical spindle taper ISO 50 (DIN 2080)
• horizontal spindle taper ISO 50 (DIN 2080)
• separate swivel control panel
• central guide lubrication
• guides hardened and ground

Technical specifications (table):
Engine power: 4 kW
Table dimensions: 1320 x 360 mm
Vertical spindle speed: 60 - 1750 (12) rev/min
Longitudinal table travel: X=1290, Y=280, Z=400 mm
Engine power level: 4 kW
Distance spindle - column: 500 mm
Spindle taper: DIN 2080 ISO 50
Voltage: 400 V
Swivel head: Huron ° L/R
Speed of horizontal spindle: 58 - 1800 (12) rev/min
Power range (feed): X=22-420, Y=22-393, Z=10-160 mm/min
T slots number / dimensions: 14 x 95 (3) mm
Milling head tilt forward/backward: 360 °
Distance spindle - table: 0-400 mm
Max. weight of workpiece: 450 kg
Rapid travel: X=1290, Y=1205, Z=513 mm/min
Dimensions l x b x h: 3340 x 2460 x 1920 mm
Weight: 2220 kg

Transport
Article number: 30725
Barcode: 8718242078887
Product group: Machines Industrie
Volumetric weight: 40000
Net weight: 2480
Gross weight: 2480

Characteristics / Technical specifications

• Model: HU 50 H-4 DRO
• EAN / Barcode: 8718242078887
• Engine power: 4 kW
• Table dimensions: 1320 x 360 mm
• Vertical spindle speed: 60 - 1750 (12) rev/min
• Longitudinal table travel: X=1290, Y=280, Z=400 mm
• Distance spindle - column: 500 mm
• Spindle taper: DIN 2080 ISO 50
• Voltage: 400 V
• Swivel head: Huron ° L/R
• Speed of horizontal spindle: 58 - 1800 (12) rev/min
• Power range (feed): X=22-420, Y=22-393, Z=10-160 mm/min
• T slots: 14 x 95 (3) mm
• Milling head tilt: 360 °
• Distance spindle - table: 0-400 mm
• Max. weight of workpiece: 450 kg
• Rapid travel: X=1290, Y=1205, Z=513 mm/min
• Overall dimensions (l x b x h): 3340 x 2460 x 1920 mm
• Machine weight: 2220 kg
• Transport net/gross weight: 2480
• Volumetric weight (transport): 40000
