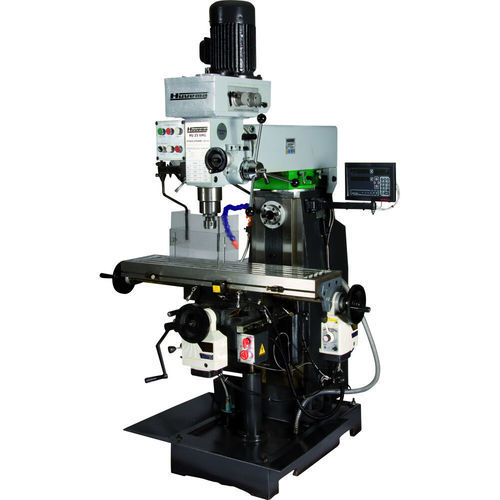

Universal milling machine HU 25-4 VHGN DRO

belt drive

Overview
Gear-wheel driven universal milling machine with horizontal and vertical spindles. The machine includes an integrated coolant system and a Sino digital readout. Designed for workshop and light industrial milling operations requiring both horizontal and vertical machining capability.

Key features

• Gear-wheel drive for spindle transmission
• Horizontal V-belt driven spindle
• Vertical gear-wheel driven spindle
• Sino digital readout for precise positioning
• Longitudinal feed via gearbox and cross feed with powerfeed
• Integrated coolant tray and cooling system

Technical specifications

• Engine power: 2.2 kW
• Continuous power rating: 1.5 kW
• Table dimensions: 240 x 800 mm
• Vertical spindle speed: 115 - 1750 rpm
• Horizontal spindle speed: 60 - 1350 rpm
• Longitudinal table travel: 400 x 200 mm
• Longitudinal travel: 400 mm
• Cross travel: 230 mm
• Vertical table travel: 350 mm
• Distance spindle - column: 230 mm
• Max. distance spindle - table: 60 - 390 mm
• Spindle taper: DIN 2080 / ISO 40
• Voltage: 400 V
• T-slots (number / width): 5 / 14 mm
• Center height (vertical spindle column): 200 - 700 mm
• Milling head tilt left/right: 2 x 45°
• Upper arm travel: 500 mm
• Overall dimensions (L x W x H): 1120 x 1060 x 2035 mm
• Weight: 1050 kg
• Article number: 12113
• EAN / Barcode: 8718242157117
• Product group: Machines Industrie
• Volumetric weight: 30000
• HS code: 84596990

Applications

• General metalworking and prototype machining
• Toolroom and maintenance workshops
• Small-batch production and repair work

Scope of delivery

• Sino digital readout (standard)
• Coolant tray and cooling system
• Standard fittings and attachments as per manufacturer
