3-axis milling machine HU 30 VHG-4
universalrotating tablebackgear

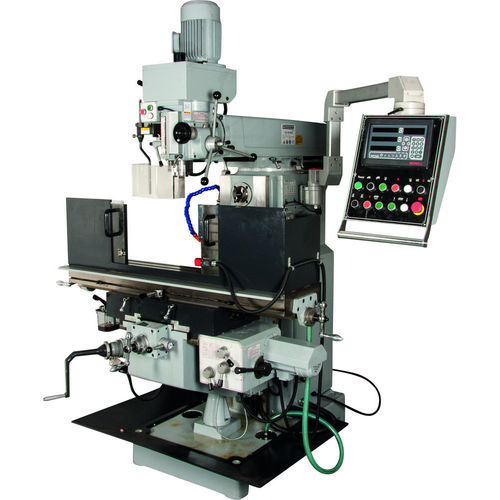

3-axis milling machine - HU 30 VHG-4 - Huvema B.V. - universal / rotating table / backgear
3-axis milling machine - HU 30 VHG-4 - Huvema B.V. - universal / rotating table / backgear
3-axis milling machine - HU 30 VHG-4 - Huvema B.V. - universal / rotating table / backgear - image - 2
3-axis milling machine - HU 30 VHG-4 - Huvema B.V. - universal / rotating table / backgear - image - 3
3-axis milling machine - HU 30 VHG-4 - Huvema B.V. - universal / rotating table / backgear - image - 4
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
universal
Structure
rotating table
Drive system
backgear
Applications
for heavy-duty machining
Other characteristics
with control panel
X travel

1,000 mm
(39.37 in)

Y travel

300 mm
(11.81 in)

Z travel

400 mm
(15.75 in)

Power

2.2 kW
(2.99 hp)

Spindle speed

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Min.: 40 rpm
(251.327 rad.min-1)

Description

Description
Universal milling machine with large table (1320 x 320 mm), equipped with power supply and rapid traverse on 3 axes. Swivel head 90° L/R and adjustable spindle distances allow vertical and horizontal milling and drilling operations.

Properties
  • Gear-driven
  • Reversible spindle (left/right rotation)
  • Separate control panel
  • Table rotatable 45°
  • Rapid traverse on X/Y/Z axes


Manufacturer technical specifications (table)
Engine power: 2.2 kW
Table dimensions: 1320 x 320 mm
Vertical spindle speed: 90 - 2000 (8) rpm
Longitudinal table travel: X=1000, Y=300, Z=400 mm
Engine power level: 2.2 kW
Distance spindle - column: 500 mm
Spindle taper: DIN 2080 ISO 40
Voltage: 400 V
Swivel head: 90° L/R
Drilling depth spindle: 120 mm
Speed of horizontal spindle: 40 - 1300 (12) rpm
Power range: X=22-420, Y=22-393, Z=6-112 mm/min
T slots number / dimensions: 14 mm (4)
Distance spindle - table: 120 - 520 mm
Distance between horizontal spindle table: 0 - 400 mm
Rapid travel: X=1290, Y=1205, Z=513 mm/min
Dimensions (L x W x H): 1710 x 1720 x 2330 mm

Technical specifications
  • Model: HU 30 VHG-4
  • EAN: 8718242078092
  • Engine power: 2.2 kW
  • Table dimensions: 1320 x 320 mm
  • Vertical spindle speed: 90 - 2000 (8) rpm
  • Longitudinal table travel: X=1000, Y=300, Z=400 mm
  • Engine power level: 2.2 kW
  • Distance spindle - column: 500 mm
  • Spindle taper: DIN 2080 ISO 40
  • Voltage: 400 V
  • Swivel head: 90° L/R
  • Drilling depth spindle: 120 mm
  • Speed of horizontal spindle: 40 - 1300 (12) rpm
  • Power range: X=22-420, Y=22-393, Z=6-112 mm/min
  • T slots number / dimensions: 14 mm (4)
  • Distance spindle - table: 120 - 520 mm
  • Distance between horizontal spindle table: 0 - 400 mm
  • Rapid travel: X=1290, Y=1205, Z=513 mm/min
  • Dimensions (L x W x H): 1710 x 1720 x 2330 mm
