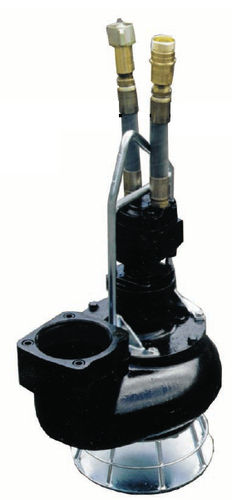

Wastewater pump S6TChydraulic motorsubmersibleimpeller
Add to favorites
Compare this product
Characteristics
- Fluid
- for wastewater
- Operation
- hydraulic motor
- Priming
- submersible
- Technology
- impeller
- Domain
- industrial
- Applications
- handling
- Flow
Max.: 1,900 us gal/min
(7,192.28239 l/min)Min.: 0 us gal/min
(0 l/min)- Pressure
Max.: 3,000 psi
Min.: 0 psi
- Head
Max.: 125'00"
(38.1 m)Min.: 0'00"
(0 m)
Description
S6TC is sold with the choice of two motor displacements to cover wide range hydraulic input flows. It has a 6" discharge trash pump specifically created to pass quickly through a 22" manhole. The discharge size is six inches and the solid handling size is 3 inches (75 in millimeters). It has a maximum flow of 1900 GPM (7200 LPM), maximum head of 125 ft. (38 meters), hydraulic input of 28 GPM (106 LPM), maximum hydraulic pressure of 2900 PSI (197 Bar), and maximum weight of 255 lbs. (116 Kg).
Key features include a high efficiency closed channel impeller (will pass 3" semi-solids). Its design allows the pump to fit through a twenty one opening variable speed hydraulic drive that provides a wide range of performance.
