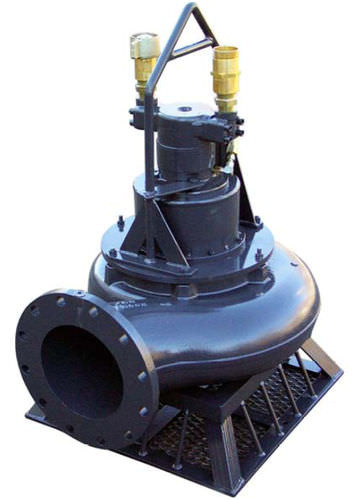

Effluent pump S6250hydraulic motorsubmersiblecentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- for effluents
- Operation
- hydraulic motor
- Priming
- submersible
- Technology
- centrifugal
- Domain
- industrial
- Applications
- handling, booster
- Flow
Min.: 0 us gal/min
(0 l/min)Max.: 5,200 us gal/min
(19,684.14128 l/min)- Pressure
Min.: 0 psi
Max.: 2,500 psi
- Head
Min.: 0'00"
(0 m)Max.: 190'00"
(57.91 m)
Description
The S6200 is a Highly Efficient Solids Handling Effluent Pump for use on jobs such as Waste Lagoons, Sewer By-Pass, Barge Transfer, Municipal Lift Stations and Tank Pumping.
Quick Specs
Discharge Size: 10 Inch
Solids Handling: 5 Inch (125mm)
Maximum Flow: 5200 GPM (19,682 LPM)
Maximum Head: 190 Feet (58 M)
Hydraulic Input: 90GPM (340 LPM) Max.
Hydraulic Pressure: 2500 PSI (170 Bar) Max.
Weight: 900 Lbs. (325 Kg))
Key Features
Balanced High Efficiency Two Vane Closed Channel Impeller
Will pass 4" (100 mm) semi-solids
Variable Speed hydraulic drive provides a wide range of performance
Oil Lubricated Seals (can run dry)
High Efficiency Balanced Vane hydraulic motor
Can be bolted directly into a pipeline or used as a booster pump
Safe Hydraulic Drive can be used where electric power is hazardous or impractical
Operates with our HT100 to HT200 power units or other hydraulic power sources capable of flows of 50 - 90 GPM
Catalogs
S6250
2 Pages
