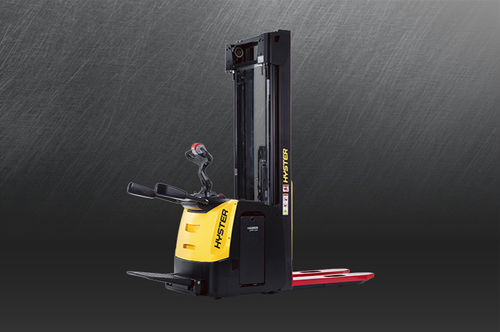

Pallet stacker truck S1.2-2.0S-IL-SLelectricstand-onwith rider platform
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- with rider platform, stand-on
- Voltage
- 24 V
- Applications
- pallet
- Other characteristics
- straddle, rugged, high-performance, high-lift, high-speed, for medium loads
- Carrying capacity
1,200 kg, 1,400 kg, 1,600 kg, 2,000 kg
(2,645.5 lb, 3,086.5 lb, 3,527.4 lb, 4,409.2 lb)- Lifting height
2,800 mm, 3,000 mm, 3,200 mm
(110.24 in, 118.11 in, 125.98 in)- Free lift
100 mm
(3.9 in)- Height of mast when lowered
1,900 mm, 2,100 mm
(74.8 in, 82.7 in)- Height of mast when raised
3,328 mm, 3,572 mm, 3,728 mm
(131.02 in, 140.63 in, 146.77 in)- Overall width
790 mm, 1,095 mm, 1,295 mm, 1,495 mm
(31.1 in, 43.1 in, 51 in, 58.9 in)- Overall length
Max.: 2,612 mm
(102.8 in)Min.: 2,009 mm
(79.1 in)- Fork width
185 mm
(7.3 in)- Fork length
1,150 mm
(45.28 in)- Fork thickness
35 mm, 55 mm, 65 mm
(1.38 in, 2.17 in, 2.56 in)- Fork spacing
570 mm
(22.44 in)- Turning circle radius
Max.: 2,137 mm
(84.1 in)Min.: 1,596 mm
(62.8 in)- Battery capacity
Max.: 375 Ah
Min.: 200 Ah
- Motor power traction
1.8 kW, 2.5 kW
(2.447 hp, 3.399 hp)- Motor power lifting
3 kW
(4.079 hp)- Travel speed
6 km/h, 7 km/h, 7.5 km/h, 8.5 km/h
(3.73 mph, 4.35 mph, 4.66 mph, 5.28 mph)- Lifting speed
Max.: 0.3 m/s
(0.984 ft/s)Min.: 0.1 m/s
(0.328 ft/s)- Weight
Max.: 1,523 kg
(3,357.64 lb)Min.: 1,100 kg
(2,425.08 lb)
Description
Reliable platform stackers designed to keep costs low and productivity high.
• Robust chassis design
• Ergonomic design
• Fast lift speeds
• Efficient servicing
• Efficient servicing
SUPERIOR PERFORMANCE WITH A LOW COST OF OPERATION
Handle the most demanding operations with varying lift heights and mast configurations. The S1.2-2.0S stacker truck features a folding platform, the S1.2-1.6S IL stacker truck includes initial lift and the S2.0S SL stacker truck includes straddle legs.
Robust chassis design
The stand-on stackers robust chassis design features a one-piece base frame with no welded arms and a pressed bumper. The welded standard frame is available in 2 basis lengths according to the battery compartment and 2 different thicknesses according to capacity. The initial lift frame is available in 2 basis lengths according to the battery compartment and 1 thickness. The bumper’s rounded design and increased thickness provides greater protection for the operator’s foot, as well as increased robustness.
VIDEO
