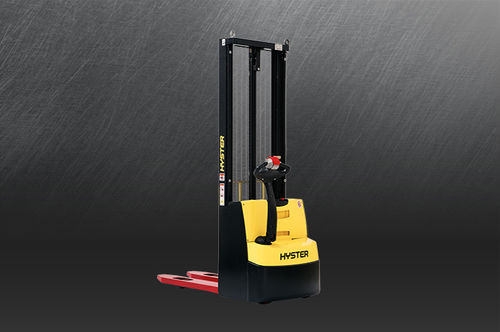

Pallet stacker truck S1.0-1.2Eelectricwalk-behind24 V
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- walk-behind
- Voltage
- 24 V
- Applications
- transport, pallet, storage
- Other characteristics
- compact, light-duty
- Carrying capacity
1,000 kg, 1,200 kg
(2,204.6 lb, 2,645.5 lb)- Lifting height
3,580 mm, 4,180 mm
(140.94 in, 164.57 in)- Free lift
100 mm
(3.9 in)- Height of mast when lowered
1,750 mm
(68.9 in)- Height of mast when raised
2,890 mm
(113.78 in)- Overall width
790 mm
(31.1 in)- Overall length
1,815 mm
(71.5 in)- Fork width
185 mm
(7.3 in)- Fork length
1,150 mm
(45.28 in)- Fork thickness
55 mm
(2.17 in)- Turning circle radius
1,426 mm
(56.1 in)- Battery capacity
Max.: 200 Ah
Min.: 150 Ah
- Motor power traction
1.2 kW
(1.632 hp)- Motor power lifting
2.2 kW
(2.991 hp)- Travel speed
6 km/h
(3.73 mph)- Lifting speed
0.12 m/s, 0.13 m/s, 0.25 m/s
(0.394 ft/s, 0.427 ft/s, 0.82 ft/s)- Weight
790 kg, 810 kg
(1,741.65 lb, 1,785.74 lb)
Description
Tough, easy to control and manoeuvre in tight spaces.
•Fast load placement
•Ergonomic design
•Efficient servicing
•Cost efficient
COMPACT PEDESTRIAN STACKERS FOR COST EFFICIENT STORAGE
The S1.0E-1.2E series offers carrying capacities up to 1.2 tonnes with a reliable, low cost of operation.
Improve productivity when storing and retrieving goods in low height applications with this compact pallet stacker.
FAST LOAD PLACEMENT
Fast load placement and retrieval is thanks to the excellent visibility through the mast. Operators can clearly see the load arms when collecting and depositing loads and the compact design allows ease of operation and turning in smaller aisles. Precision lifting controls allow the operator to easily handle loads up to 1.2 tonnes. 1-stg FFL (Full Free Lift) and 2-stg Non-Free Lift (NFL) masts available and the forks can be adjusted to an ergonomic working height for order picking.
