Electric stacker truck S2.0SD
walk-behindplatform24 V

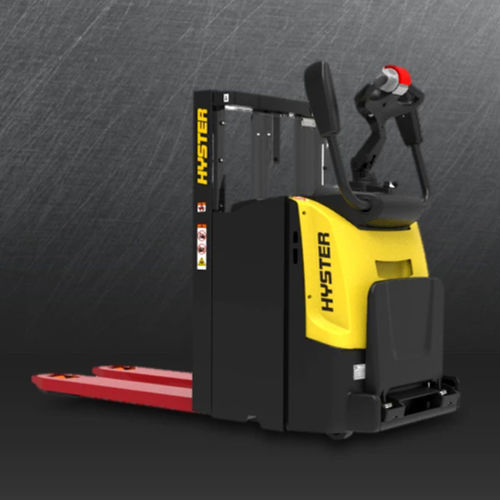

Electric stacker truck - S2.0SD - HYSTER - walk-behind / platform / 24 V
Electric stacker truck - S2.0SD - HYSTER - walk-behind / platform / 24 V
Electric stacker truck - S2.0SD - HYSTER - walk-behind / platform / 24 V - image - 2
Electric stacker truck - S2.0SD - HYSTER - walk-behind / platform / 24 V - image - 3
Electric stacker truck - S2.0SD - HYSTER - walk-behind / platform / 24 V - image - 4
Electric stacker truck - S2.0SD - HYSTER - walk-behind / platform / 24 V - image - 5
Electric stacker truck - S2.0SD - HYSTER - walk-behind / platform / 24 V - image - 6
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
walk-behind, platform
Voltage
24 V
Applications
handling, pallet, for industrial applications
Other characteristics
compact, rugged, high-performance, with platform, for medium loads
Carrying capacity

2,000 kg
(4,409.2 lb)

Lifting height

1,574 mm
(61.97 in)

Free lift

100 mm
(3.9 in)

Height of mast when lowered

1,346 mm
(53 in)

Height of mast when raised

2,133 mm
(83.98 in)

Overall width

750 mm
(29.5 in)

Overall length

2,030 mm, 2,463 mm, 2,532 mm, 2,629 mm
(79.9 in, 97 in, 99.7 in, 103.5 in)

Fork width

185 mm
(7.3 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

55 mm
(2.17 in)

Fork spacing

570 mm
(22.44 in)

Turning circle radius

2,341 mm, 2,813 mm
(92.2 in, 110.7 in)

Battery capacity

250 Ah, 375 Ah

Motor power traction

3 kW
(4.079 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

6 km/h, 9 km/h, 10 km/h
(3.73 mph, 5.59 mph, 6.21 mph)

Lifting speed

0.15 m/s, 0.31 m/s
(0.492 ft/s, 1.017 ft/s)

Weight

1,000 kg, 1,125 kg, 1,140 kg
(2,204.62 lb, 2,480.2 lb, 2,513.27 lb)

Description

When you need to meet demands for efficient handling in multi-shift operations, the Hyster® S2.0SD Platform Double Stacker enables two pallets to be moved at the same time, up to a maximum weight of 2000kg. Configurable operator compartment Lithium-ion ready Greater control, reduced vibrations Compact and robust Patented Anti-Trapping function Configurable toughness for optimal performance Choose the stacker truck configuration that works for the specific application’s requirements, whether that’s travelling long distances, or working in a loading dock. For example, applications with tight spaces can select a model with a foldable platform and side arms, helping maximise manoeuvrability and providing flexibility. For high traffic environments, a fixed platform with side or rear operator compartment panels may be well suited. A range of optional extras (dependent on the model) are also available to enhance the operator experience while optimising productivity. These include Hyster Tracker telematics, light packages, adjustable tiller, a key and keypad start system, load backrest, load wheels, a range of drive wheels, foot sensor, cold store conversion, bottle holder, clipboard, multipurpose bars and clamps. Lead acid battery or li-ion ready. Choose from a wide range of batteries to match the needs of the application. Those opting to use a lithium-ion battery with the truck will also benefit from high uptime across multiple shifts thanks to the ability to opportunity charge during breaks via the convenient side plug.
