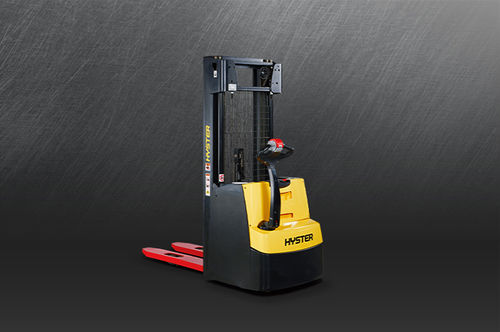

Electric stacker truck S1.0-2.0

battery-poweredstand-onwalk-behind

Overview
Reliable, energy-efficient pedestrian high-lift stackers designed for stacking and retrieval at low to medium lift heights and for horizontal load transfer over short to medium travel distances.

Key features

• Robust compact design
• AC motor
• Ergonomic design
• Increased productivity
• Low maintenance

Tough with maximum control and visibility
The Hyster® S1.0-2.0 pedestrian stacker is easy to manoeuvre during stacking and retrieval at low and medium heights. Its design delivers good operator visibility through the mast and clear sight of load arms for accurate picking and placement.

Robust compact design
The chassis features a one-piece base frame without welded arms and a pressed bumper with rounded, thicker profile to protect the operator’s feet and increase durability. The compact footprint enables operation and turning in narrow aisles, while mast profiles and lift cylinder placement improve visibility.

AC motor
Full AC drive enables smooth changes of travel direction, faster cycle speeds and improved pallet handling control. Fast lift and lower speeds with mast options up to 6 m. Two-stage NFL/FFL and three-stage FFL masts are available with configurations for open and closed pallets.

Ergonomic design
The tiller arm is mounted in a mid-height offset position to reduce steering effort and improve control. Models with initial lift are available for uneven floors, door sills and ramps. Performance settings are adjustable to suit the application.

Increased productivity
The 1.2 kW traction motor provides strong acceleration and travel speeds up to 6 km/h (pedestrian) and 8.5 km/h (standing), which can be limited to the application. Class-leading low energy consumption reduces operating cost.

Low maintenance
Dash display provides alarms, digital battery indicator, hour meter and error codes. Built-in diagnostics and CANbus technology enhance functionality and reliability and minimise servicing. Quick-remove covers ease service access; hydraulic oil and filter intervals are 3000 hours or 3 years. Standard warranty 24 months. Wide range of options: key/keypad start, multiple fork lengths, cold store protection, drive wheel variants, Pedestrian Awareness Light, battery and charging variants and more.

Models and specifications (table)
Model | Load Capacity | Lift Height | AST (wide / long) | Battery Capacity | Weight
S1.0 | 1000kg | 3800mm | 2307 / 2293mm | 24V / 150-200Ah | Li-ion 24V / 200Ah (V/Ah) | 956kg
S1.2 | 1200kg | 4900mm | 2359 / 2345mm | 24V / 210-250Ah | Li-ion 24V / 200Ah (V/Ah) | 1005kg
S1.2IL | 1200kg | 4900mm | 2449 / 2436mm | 24V / 200-250Ah | Li-ion 24V / 200Ah (V/Ah) | 1111kg
S1.4IL | 1400kg | 5460mm | 2449 / 2436mm | 24V / 200-375Ah | Li-ion 24V / 300Ah (V/Ah) | 1111kg
S1.4 | 1400kg | 5460mm | 2359 / 2345mm | 24V / 210-375Ah | Li-ion 24V / 200-300Ah (V/Ah) | 1038kg
S1.6IL | 1600kg | 6020mm | 2518 / 2505mm | 24V / 315-375Ah | Li-ion 24V / 300Ah (V/Ah) | 1187kg
S1.6 | 1600kg | 6020mm | 2428 / 2414mm | 24V / 315-375Ah | Li-ion 24V / 300Ah (V/Ah) | 1145kg
S1.6 SL | 1600kg | 5460mm | 2504 / 2490mm | 24V / 315-375Ah (V/Ah) | 1431kg
S2.0 | 2000kg | 4000mm | 2428 / 2414mm | 24V / 315-375Ah | Li-ion 24V / 300Ah (V/Ah) | 1151kg

Characteristics / technical specifications

• Product family: Hyster S1.0-2.0, S1.2-1.6 IL pedestrian high-lift stackers
• Capacity range: 1000 kg to 2000 kg
• Lift height options: from 3800 mm up to 6020 mm (model dependent)
• AST (aisle footprint): see table per model
• Battery options: 24V lead-acid variants and integrated Li-ion options (24V / 200–300 Ah typical)
• Traction motor: 1.2 kW
• Travel speeds: up to 6 km/h (pedestrian) and up to 8.5 km/h (standing)
• Mast options: two-stage NFL/FFL and three-stage FFL; height options up to 6 m
• Service intervals: hydraulic oil and filter every 3000 hours or 3 years
• Warranty: standard 24 months
