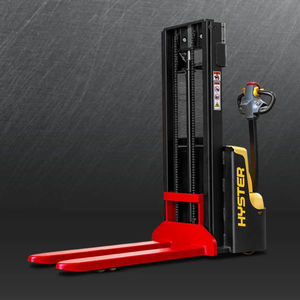

Pallet stacker truck S1.0-1.5C
electricwalk-behind24 V

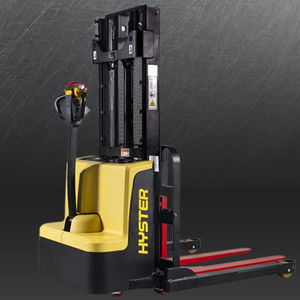

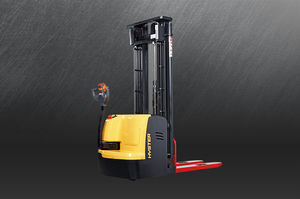

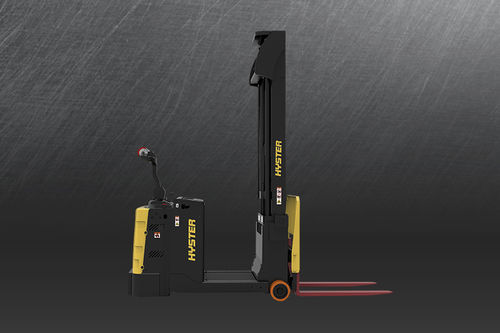

Pallet stacker truck - S1.0-1.5C - HYSTER - electric / walk-behind / 24 V
Pallet stacker truck - S1.0-1.5C - HYSTER - electric / walk-behind / 24 V
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Applications
handling, for warehouse, for pallet
Other characteristics
rugged, counterbalanced, light-duty, for medium loads
Carrying capacity

1,000 kg, 1,200 kg, 1,500 kg
(2,204.6 lb, 2,645.5 lb, 3,306.9 lb)

Lifting height

4,176 mm, 5,076 mm
(164.41 in, 199.84 in)

Free lift

100 mm
(3.9 in)

Height of mast when lowered

2,325 mm
(91.5 in)

Height of mast when raised

3,961 mm
(155.94 in)

Overall width

788 mm, 939 mm
(31 in, 37 in)

Overall length

2,742 mm, 2,892 mm, 3,042 mm
(108 in, 113.9 in, 119.8 in)

Fork width

100 mm
(3.9 in)

Fork length

1,000 mm
(39.37 in)

Fork thickness

35 mm
(1.38 in)

Turning circle radius

1,560 mm, 1,707 mm, 1,855 mm
(61.4 in, 67.2 in, 73 in)

Battery capacity

300 Ah, 400 Ah

Motor power traction

4 kW
(5.438 hp)

Motor power lifting

3 kW
(4.079 hp)

Travel speed

6 km/h
(3.73 mph)

Lifting speed

0.13 m/s, 0.14 m/s, 0.18 m/s, 0.27 m/s
(0.427 ft/s, 0.459 ft/s, 0.591 ft/s, 0.886 ft/s)

Weight

2,180 kg, 2,280 kg, 2,360 kg, 2,505 kg
(4,806.08 lb, 5,026.54 lb, 5,202.91 lb, 5,522.58 lb)

Description

A tough and reliable pedestrian stacker ideal for small and intense warehouse operations. •CAN bus technology •Operator-friendly tiller head •Dependable and reliable •Low cost of ownership •Easy maintenance DOCK-TO-STOCK AND EVERYTHING IN BETWEEN. The robust Hyster® counterbalanced pedestrian stacker provides superior performance and reliability in demanding operations. CANBUS TECHNOLOGY CAN bus electronics reduce wiring complexity and delivers increased functionality, reliability and servicing. The truck’s built-in diagnostic system for maintenance communication also reduces downtime. OPERATOR-FRIENDLY TILLER HEAD The operator friendly tiller head is designed for improved load handling. The low effort controls are ergonomically placed to reduce operator fatigue and optimise load handling with either hand. The EPS system provides optimum directional control at any speed. The vertically mounted lifting motor with dampers reduces noise and vibration.

VIDEO

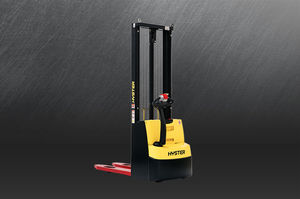

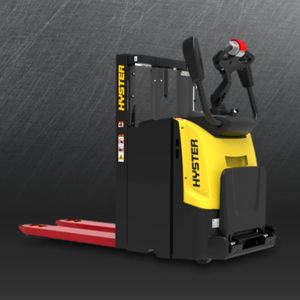

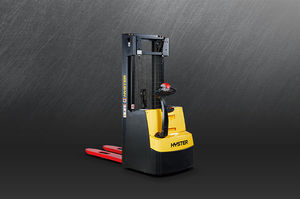

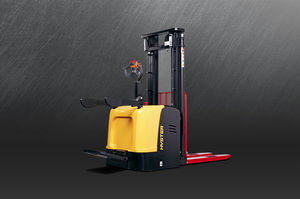

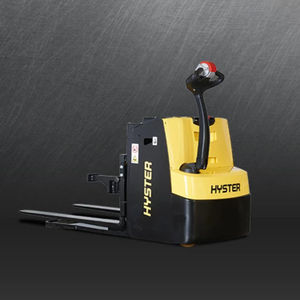

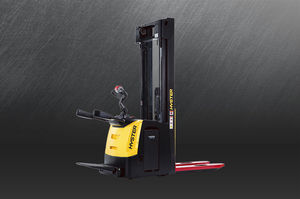

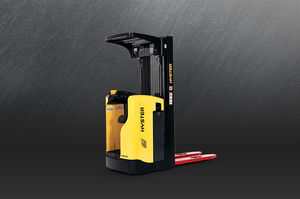

Other HYSTER products
