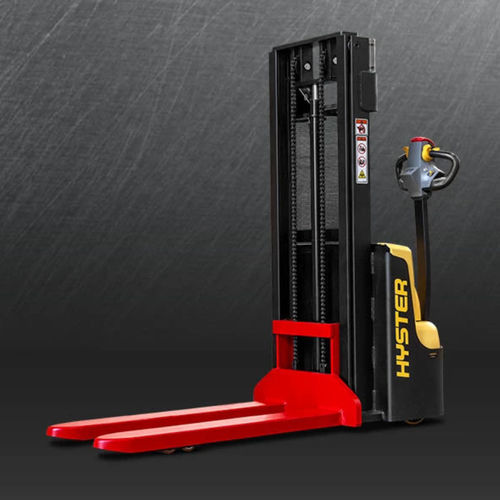

Electric stacker truck SC1.2
walk-behind24 Vfor industrial applications

Electric stacker truck - SC1.2 - HYSTER - walk-behind / 24 V / for industrial applications
Electric stacker truck - SC1.2 - HYSTER - walk-behind / 24 V / for industrial applications
Electric stacker truck - SC1.2 - HYSTER - walk-behind / 24 V / for industrial applications - image - 2
Electric stacker truck - SC1.2 - HYSTER - walk-behind / 24 V / for industrial applications - image - 3
Electric stacker truck - SC1.2 - HYSTER - walk-behind / 24 V / for industrial applications - image - 4
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Applications
handling, for warehouse, pallet, for industrial applications
Other characteristics
compact, rugged, high-lift, for medium loads, column type
Carrying capacity

1,200 kg
(2,645.5 lb)

Lifting height

2,500 mm
(98.43 in)

Height of mast when lowered

1,730 mm, 1,980 mm, 2,230 mm
(68.1 in, 78 in, 87.8 in)

Height of mast when raised

2,935 mm, 3,435 mm, 3,935 mm
(115.55 in, 135.24 in, 154.92 in)

Overall width

820 mm
(32.3 in)

Overall length

1,150 mm, 1,220 mm, 1,730 mm, 1,800 mm
(45.3 in, 48 in, 68.1 in, 70.9 in)

Fork width

160 mm
(6.3 in)

Fork length

1,150 mm, 1,220 mm
(45.28 in, 48.03 in)

Fork thickness

70 mm
(2.76 in)

Turning circle radius

1,425 mm
(56.1 in)

Battery capacity

60 Ah

Motor power traction

0.75 kW
(1.02 hp)

Motor power lifting

2.5 kW
(3.399 hp)

Travel speed

4 km/h, 4.5 km/h
(2.49 mph, 2.8 mph)

Lifting speed

102 mm/s, 190 mm/s

Weight

543 kg
(1,197.11 lb)

Description

A dependable and cost effective Hyster compact stacker to help tackle internal pallet handling challenges with ease. Stable and dependable stacking Minimised wear and tear Fast charging lithium-ion battery Complete service and parts Comfortable operation Durable design for simple stacking Harness the power of lithium-ion with the compact Hyster SC1.2 electric stacker. Move everyday loads and open pallets in stock rooms or on industrial manufacturing sites with a productive, cost effective, and long-lasting solution. With a high stability design, alongside a strong frame and durable mast, call on the SC1.2 pallet stacker for secure internal pallet handling whenever it is needed. Compact and manoeuvrable, with a choice of three lift heights up to 3500mm, a two-stage mast, and a load capacity of 1200kg, this is a dependable pallet stacking solution for operations and operators alike. Health and Safety Managers can have peace of mind too. With a built-in charger, the truck powers off during charging, helping minimise hazards. Plus, the 30mm low ground clearance design also helps reduce the risk of foot injuries. In industrial manufacturing, even simple pallet moves can be part of operations. Built with robust components, matched with a high-strength frame and mast, this pallet stacker truck withstands wear and tear. That results in greater durability and improved service life. When needed, cost-effective genuine replacement parts are available, making maintenance hassle-free. With a lithium-ion battery on board for short charging times, this Hyster stacker delivers consistent performance and uptime, as well as supporting a longer service life.
