Pallet stacker truck RS1.6
electricride-on24 V

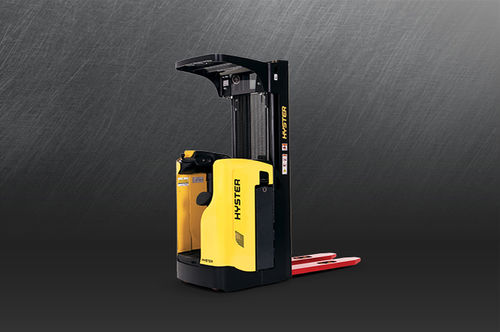

Pallet stacker truck - RS1.6 - HYSTER - electric / ride-on / 24 V
Pallet stacker truck - RS1.6 - HYSTER - electric / ride-on / 24 V
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
ride-on
Voltage
24 V
Applications
transport, for warehouse, for pallet, narrow-aisle
Other characteristics
high-lift, high-speed, for medium loads
Carrying capacity

1,600 kg
(3,527.4 lb)

Lifting height

6,020 mm
(237.01 in)

Free lift

100 mm
(3.9 in)

Height of mast when lowered

2,300 mm
(90.6 in)

Height of mast when raised

4,128 mm
(162.52 in)

Overall width

798 mm
(31.4 in)

Overall length

2,159 mm
(85 in)

Fork width

185 mm
(7.3 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

55 mm
(2.17 in)

Turning circle radius

1,640 mm
(64.6 in)

Battery capacity

465 Ah

Motor power traction

2.6 kW
(3.535 hp)

Motor power lifting

3 kW
(4.079 hp)

Travel speed

9 km/h
(5.59 mph)

Lifting speed

0.14 m/s, 0.28 m/s
(0.459 ft/s, 0.919 ft/s)

Weight

1,643 kg
(3,622.19 lb)

Description

The Hyster high lift stackers are perfect for stacking pallets in small warehouses with narrow aisles, for block stacking and for horizontal load transfer •Tough and durable •Fast speeds •Optimised operator compartment •Easy to steer and control •Simple maintenance DOCK-TO-STOCK AND EVERYTHING IN BETWEEN. Offering excellent manoeuvrability, control and visibility, the tough Hyster® Rider Stacker delivers good acceleration and fast travel and lift speeds for the most demanding applications. Ideal for stacking and retrieving goods at various heights, the Hyster® Rider Stacker transports goods over short and longer travel distances and manoeuvres in racking and shelving in tight spaces, ensuring low ownership costs. TOUGH AND DURABLE The high lift stacker’s strong and completely welded base frame is available with a choice of four different fork widths and eight different lengths to match demanding application requirements. The bumper is a single piece of 10mm thick construction – no splits or bolted joints to reduce potential damage and service risk. The side panels of the truck are made from 5mm pressed steel and are built into the exterior of the truck to once again reduce the risk of damage.
