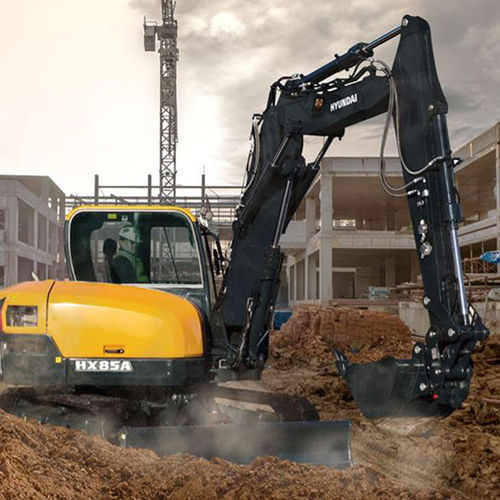

Mini-excavator HX85A - Stage V

crawlerdieselconstruction

Overview
The HX85A compact (mini) excavator is part of the A‑series, a generation of construction machines compliant with European Stage V emissions. Designed for urban worksites and confined spaces, it integrates functions from larger excavators to deliver stability, versatility and efficient operation.

Key features

• Stage V Yanmar engine (4TNV98C‑PHYB) with electronic engine management and self‑regenerating DPF (no SCR)
• Load‑sensing hydraulic system for smooth multi‑function operation and precise machine control
• Mono or two‑piece boom configurations with standard and long arm options
• New ergonomic, spacious cabin with controls positioned for operator accessibility
• Two‑piece boom option for extended reach while enabling effective work close to the tracks

Product highlights

• Operation weight: 8,480 kg
• Engine model: Yanmar 4TNV98C‑PHYB
• Engine power: 49.9 kW
• Bucket capacity (heaped): 0.25 m³

Technical details
Main pump — Max. flow: 144 l/min
Digging force — Bucket breakout force: 6,289.9 kgf; Arm crowd force: 4,221.6 kgf
Max digging depth: 4,290 - 4,640 mm

Notes
The HX85A is particularly suited to urban and confined‑space applications where a compact footprint, combined with the performance and functionality of larger machines, is required.

Specifications

• Operation weight: 8,480 kg
• Engine model: Yanmar 4TNV98C‑PHYB (Stage V)
• Engine power: 49.9 kW
• Exhaust aftertreatment: EGR / DOC / DPF (no SCR)
• Main pump — Max. flow: 144 l/min
• Bucket breakout force: 6,289.9 kgf
• Arm crowd force: 4,221.6 kgf
• Max digging depth: 4,290 - 4,640 mm
• Bucket capacity (heaped): 0.25 m³
• Hydraulics: Load‑sensing hydraulic system
• Boom options: Mono or two‑piece boom; standard and long arm options
• Operator environment: New ergonomic cabin interior for improved comfort and control
