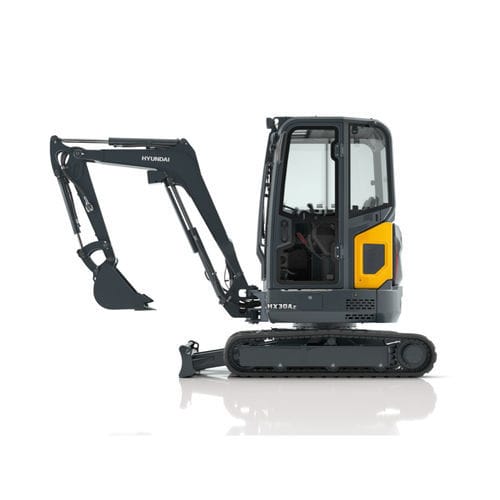

Mini-excavator HX30A Z

crawlerdieselcompact

Product summary
The Hyundai HX30A Z is a 3-tonne class compact excavator designed for high manoeuvrability and efficient performance. Featuring a zero tailswing layout and a Stage V Kubota D1305 engine, the machine is suitable for confined sites and demanding routine tasks.

Highlights

• Operating weight: 2890 kg
• Engine model: Kubota D1305
• Engine power: 18.5 kW
• Bucket capacity: 0.06 m³

Technical details
Engine Max. Torque: 81.4 Nm
Engine Emission: Stage V
Max digging depth: 2695 mm

Product overview
The HX30A Z combines a zero tailswing design with an efficient Stage V engine to deliver the power needed for a variety of applications while minimising rear overhang. A quick coupler option is available to speed attachment changes and increase jobsite flexibility.

Comfort & controllability

• 5-inch full-colour LCD monitor provides quick access to key functions and daily diagnostics.
• IP68-rated monitor for enhanced protection in canopy configurations.
• Ergonomically optimised layout and operator controls to reduce fatigue.
• Auto-shift travel speed for smooth transitions between high and low travel ranges.
• Dozer blade lever and travel speed switch improve operational control.

Safety

• Auto-safety lock prevents unintended ignition and machine movement.
• Overload warning with audible and visual alarms to protect lifting operations.
• Anti-theft system with password-protected ignition key.
• Safety valves on boom, arm and dozer blade cylinders for secure digging and lifting with blade down.
• New cylinder and hose guards increase component protection.

Productivity & performance

• Zero tailswing eliminates rear overhang, enhancing manoeuvrability in tight spaces.
• Efficient Stage V engine delivers 18.5 kW (24.8 hp) gross for improved cycle times and fuel economy.
• Quick coupler option available for fast attachment changes.
• 2-way auxiliary piping standard; operator-selectable single or double acting mode.

Serviceability & telematics

• Tilt-up cab and redesigned cowl for easier access during routine maintenance.
• Hyundai Hi-MATE remote management system (telematics) for GPS-based monitoring and support.
• Reinforced complementary attachments for heavy-duty tasks.

FAQs
Does the HX30A Z comply with European Stage V emission levels?
Yes. The Kubota D1305 engine meets EU Stage V emissions requirements.

Is the HX30A Z compatible with Hi-MATE?
Yes. Hi-MATE telematics supports remote monitoring of machine activity and performance.

What is the operating weight of the HX30A Z?
The operating weight is 2890 kg.

Is the HX30A Z a zero tailswing machine?
Yes. The HX30A Z features a zero tailswing configuration that eliminates rear overhang.

Technical specifications

• Model: HX30A Z
• Operating weight: 2890 kg
• Engine model: Kubota D1305
• Engine power: 18.5 kW (24.8 hp gross)
• Bucket capacity: 0.06 m³
• Max. torque: 81.4 Nm
• Engine emission standard: Stage V
• Max digging depth: 2695 mm
• Zero tailswing (no rear overhang)
• Quick coupler option available
• 2-way auxiliary piping standard (selectable single or double acting)
• 5-inch IP68 waterproof full-colour LCD monitor
• Auto-shift travel speed
• Dozer blade lever and travel speed switch
• Auto-safety lock, overload warning and anti-theft password-protected ignition key
• New cylinder and hose guards
• Tilt-up cab for maintenance access
• Hi-MATE telematics supported
