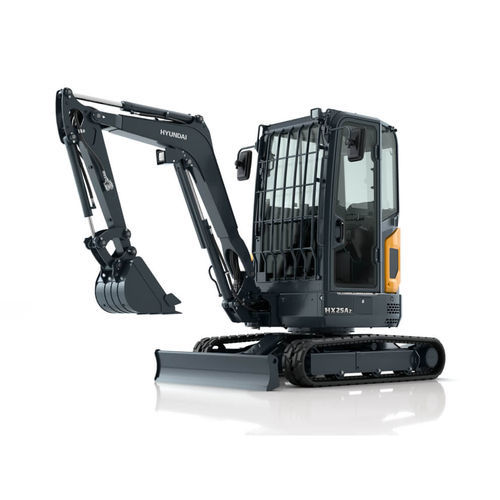

Mini-excavator HX25A Z

crawlerdieselconstruction

Product overview
The HX25A Z is a 2.5-tonne compact excavator with a true zero tailswing design for safe operation and easy transport. Fitted with a Kubota D1305 Stage V engine, it delivers 18.5 kW gross power and is available with a quick coupler installation for fast attachment changes.

Key highlights

• True zero tailswing design for enhanced manoeuvrability in confined sites and simplified trailer loading.
• New Stage V Kubota D1305 engine: 18.5 kW gross, improved efficiency.
• Quick coupler option for rapid attachment swaps.
• Standard 2-way auxiliary piping (operator-selectable single or double acting).

Comfort & controllability
Cabin and canopy variants prioritise operator comfort with a spacious layout and reduced noise levels.

• 5-inch full‑colour LCD monitor for clear status and settings.
• IP68 waterproof monitor (canopy models).
• Optimised ergonomics and user-friendly controls.
• Auto‑shift travel for smooth transitions between high and low speeds.
• Dozer blade lever and travel speed switch to improve operability.

Safety
The machine integrates multiple safety features to protect operator and equipment.

• Auto‑safety lock to prevent unintentional ignition and movement.
• Overload warning with audible and visual alarm for excessive loads.
• Anti‑theft system with password‑protected ignition.
• Safety valves on boom, arm and dozer blade cylinders to ensure secure digging/lifting in case of pressure drop.
• Cylinder and hose guards supplied as standard.

Mobility
Designed for straightforward transport with compact dimensions and low weight.

• Zero tailswing profile enables quick trailer loading and safer operation in tight areas.
• Operating weight: 2685 kg; transport weight indicated approx. 2610–2685 kg depending on configuration.
• Can be transported with quick hitch, breaker and multiple buckets without exceeding regulatory limits (configuration dependent).

Productivity & performance
Features that increase jobsite productivity and reduce operating costs.

• Zero tailswing reduces risk of rear collisions and improves access on confined sites.
• Stage V engine and efficient hydraulics for better fuel economy and performance.
• Quick coupler fitting available for fast attachment changes.
• Standard 2‑way auxiliary piping; selectable single or double acting mode.

Serviceability
Accessible layout and telematics support reduce downtime and ownership cost.

• Tiltable cabin and revised cowl layout for improved access to service points.
• HiMATE telematics for remote monitoring, diagnostics and fleet management.
• Robust attachments with reinforced steel components for extended service life.

Technical details (summary)
Engine: Kubota D1305 — Max. torque 81.4 Nm, Emissions Stage V
Max. digging depth: 2515 mm
Bucket capacity: 0.06 m3

FAQs (selected)

• Does the HX25A Z meet EU Stage V emissions? Yes, it complies with Stage V regulations.
• Does it support HiMATE telematics? Yes, HiMATE is supported for remote monitoring.
• What is the operating weight? 2685 kg.
• Is it zero tailswing? Yes — true zero tailswing design.
• Can it be transported on a trailer? Yes, it is designed for trailer transport depending on local regulations and configuration.

Characteristics / technical specifications

• Model: HX25A Z
• Operating weight: 2685 kg
• Transport weight (approx.): 2610–2685 kg (configuration dependent)
• Engine model: Kubota D1305
• Engine power: 18.5 kW (gross)
• Bucket capacity: 0.06 m3
• Max. torque: 81.4 Nm
• Engine emission level: Stage V
• Max digging depth: 2515 mm
• Design: True zero tailswing (no rear overhang)
• Standard: 2‑way auxiliary piping (selectable single/double acting)
• Options/features: Quick coupler fitting, HiMATE telematics, IP68 5‑inch LCD monitor, anti‑theft password ignition, overload warning, safety valves, cylinder/hose guards
