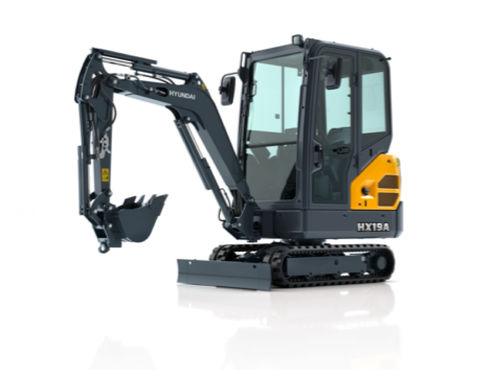

Medium excavator HX19A

crawlerdieselconstruction

Short description
The HX19A compact excavator is a 1.9-tonne hydraulic excavator designed for urban construction, utilities and contractor fleets requiring a compact footprint with strong digging and lifting capacity.

Product overview
The HX19A features a conventional minimal tail overhang for increased digging and lifting force compared with zero tail-swing machines. It is offered with a sealed cabin or optional open canopy. Powertrain options include a new Stage V engine with a gross power rating of 16.5 kW (12.1 hp) and a referenced engine power value of 12.1 kW for certain specifications.

Technical details (introductory)
Max. Torque: 54.6 Nm
Engine Emission: Stage V
Max digging depth: 2540 mm

Highlights

• Operating weight: 1885 kg (approx. 1.9 t)
• Engine model: Kubota D902
• Engine power: 12.1 kW (gross power referenced as 16.5 kW / 12.1 hp)
• Bucket capacity: 0.04 m3

Comfort & controllability
Cabin and canopy configurations prioritise operator visibility and ease of use, with reduced interior sound levels and an intuitive control layout.

• 5-inch LCD monitor for settings and quick access to key functions.
• LCD monitor rated IP68 for water resistance (beneficial for canopy use).
• Full-glass door on the cab variant for improved visibility.
• Proportional fingertip controls for precise hydraulic attachment operation.
• Auto-Shift function for smooth switching between high and low travel speeds.

Safety
Designed to meet high safety standards with integrated protection systems and optional guards.

• Auto-Safety Lock to prevent unintended operation.
• ROPS and TOPS protection for cab and canopy versions.
• Optional FOG (Falling Object Guard) for additional overhead protection.
• Hydraulic accumulator to safely lower boom and arm when parked.
• Safety valve on the dozer blade cylinder for secure loading and digging operations.

Productivity
The efficient Stage V powertrain delivers usable power while meeting EU emission limits; simple exhaust architecture reduces maintenance requirements.

• Standard 2-way auxiliary hydraulic piping for hammers or shears.
• Optional factory-fitted hydraulic line for hydraulic couplers enabling quick attachment changes from the cab.
• Extendable tracks and adjustable dozer blade for greater stability and easier transport.
• Multiple dipper arm lengths available to adapt reach and performance to the job.

Serviceability
Service access and component protection have been optimized to reduce downtime and simplify maintenance tasks.

• Boom routing places hydraulic hoses inside the boom for improved protection.
• Standard cylinder guards on boom, arm and bucket reduce risk of damage.
• Blade cylinder maintenance interface simplifies hose replacement and access.
• Optional Hi MATE remote management telematics (Hyundai) for machine monitoring and remote diagnostics.

FAQs

• Does the HX19A comply with European Stage V emission levels? Yes. The engine meets EU Stage V requirements.
• Does the HX19A integrate with Hi MATE? Yes. Hyundai Hi MATE telematics is supported as an option.
• What is the operating weight of the HX19A? Operating weight is 1.9 tonnes (1885 kg).
• Does the HX19A include anti-theft features? Yes. Anti-theft functions include password-protected ignition; optional Hi MATE GPS tracking is available.

Technical specifications

• Model: HX19A
• Operating weight: 1885 kg (approx. 1.9 t)
• Engine model: Kubota D902
• Engine power: 12.1 kW (gross power also referenced as 16.5 kW / 12.1 hp)
• Max. torque: 54.6 Nm
• Engine emission: Stage V
• Bucket capacity: 0.04 m3
• Max. digging depth: 2540 mm
• Options: cab or canopy, Hi MATE telematics (optional), factory hydraulic line for quick couplers, extendable tracks, multiple dipper arm lengths
