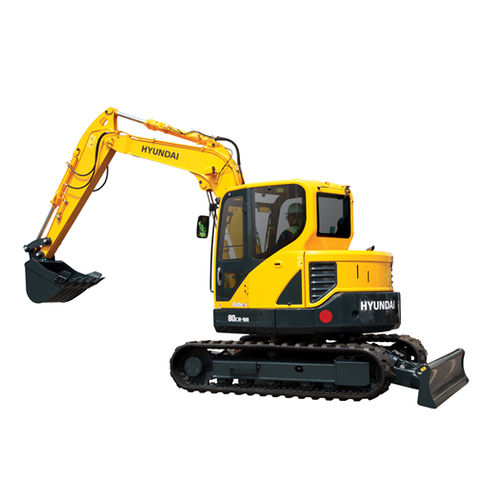

Midi excavator R80CR-9A

crawlerTier 3construction

Overview
The R80CR-9A compact excavator Hyundai offers minimal tail swing and a cabin designed for operator comfort and safety. It is Stage V certified and intended for high productivity in confined job sites.

Key highlights

• Operation weight: 8,350 kg
• Engine model: Yanmar 4TNV98C — 49 kW
• Bucket capacity: 0.14 m³ – 0.28 m³
• Main pump max flow: 2 x 68.4 l/min

Technical details (selected)
Main Pump — Max. Flow: 2 x 68.4 l/min
Bucket Breakout Force: 5,700 kgf
Arm Crowd Force: 4,300 kgf
Max Digging Depth: 4,180 mm

Product description
The R80CR-9A is the largest compact model in Hyundai's current line-up, combining minimal rear swing with powerful hydraulics and short cycle times. The standard super-deluxe fully adjustable seat and an operator-focused layout support productivity on-site. Optional configurations include steel tracks, long arm, articulated boom, blade cylinder load holding valve and third auxiliary hydraulic lines.

Features & benefits

• Intuitive instrument cluster for simplified machine control
• Offset boom for increased versatility on confined sites
• Minimal tail swing design for effective work in narrow areas
• Arm options: standard power arm for maximum breakout force or optional long arm for greater reach and digging depth
• Cabin comfort with advanced climate control and reduced noise levels
• Ergonomic pilot-operated hand levers and conveniently positioned control switches
• Predictable, precise movements via exclusive control valve systems and torque-limiting piston pumps
• Accessible service points for straightforward maintenance and reduced downtime

Notes
Stage V certified. Stage V brochure available on request.

Specifications

• Model: R80CR-9A
• Operation weight: 8,350 kg
• Engine model: Yanmar 4TNV98C
• Engine power: 49 kW
• Bucket capacity: 0.14 m³ – 0.28 m³
• Main pump max flow: 2 x 68.4 l/min
• Bucket breakout force: 5,700 kgf
• Arm crowd force: 4,300 kgf
• Max digging depth: 4,180 mm
• Optional equipment: steel tracks, long arm, articulated boom, blade cylinder load holding valve, third auxiliary hydraulic lines
