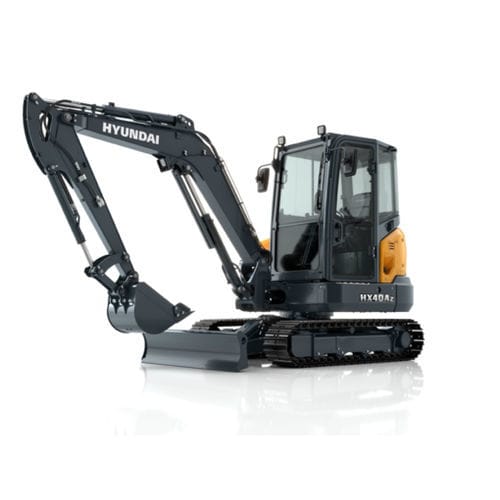

Mini-excavator HX40A

crawlerdieselcompact

Product overview
The HX40A is a conventional tailswing compact excavator in the 4.0 tonne class designed to deliver increased digging and lifting power. It is offered in cabin or canopy configurations and is powered by a Stage V engine producing 29.1 kW (39.6 hp gross). Standard and optional equipment include a Load Sensing hydraulic system, tilting cabin, rearview camera, optional 4-way dozer blade and Hi-MATE telematics.

Highlights

• Operating weight: 4390 kg
• Engine model: Yanmar 4TNV88C
• Engine power: 29.1 kW (39.6 hp gross)
• Bucket capacity: 0.09 m3

Comfort & controllability
The HX40A cabin and canopy are designed for operator comfort and intuitive control, with a spacious interior and accessible interfaces.

• 5-inch LCD display for settings and function access
• IP68 waterproof LCD monitor for canopy versions
• Full-glass door for improved visibility
• Modern MP3 radio and USB port as standard
• Auto-Shift for smooth high/low travel transitions

Safety
Built-in protections and safety systems reduce risk to operator, machine and site.

• Auto Safety Lock to prevent accidental operation
• ROPS, TOPS and optional Falling Object Guard (FOG)
• Anti-theft system with password-protected ignition and optional GPS tracker
• Hydraulic accumulator for controlled lowering of boom/arm
• Safety valves on boom, arm and dozer blade that activate on hydraulic hose damage

Productivity
Efficient Stage V engine and Load Sensing hydraulics provide smooth, powerful and precise control to support multi-task applications.

• 2-way auxiliary hydraulic piping as standard for hammer/shear attachments
• Standard floating function and optional 4-way dozer blade
• Flow-sharing function for simultaneous multi-operation
• Adjustable hydraulic attachment flow via digital display
• Optional factory-fitted hydraulic line for quick-change coupler operation from inside the cabin

Serviceability
Design features simplify maintenance and reduce downtime for fleet operators.

• Tilting cabin for easy access to components
• Boom, arm and bucket cylinder guards for protection
• Dozer cylinder maintenance connection to simplify hose replacement
• Hi-MATE remote management system included for monitoring and support

Technical details

• Conventional tailswing compact excavator, cabin or canopy
• Gross engine power: 29.1 kW (39.6 hp)
• Engine model: Yanmar 4TNV88C
• Engine emissions: Stage V
• Max. torque: 144.9 Nm
• Operating weight: 4390 kg (approx. 4 tonnes)
• Bucket capacity: 0.09 m3
• Max digging depth: 3420 mm
• Hydraulic system: Load Sensing
• Auxiliary piping: 2-way standard (for hammers/shears)
• Standard features: tilting cabin, 5-inch LCD monitor, IP68 waterproof monitor (canopy), auto-shift travel, floating function
• Optional: rearview camera, 4-way dozer blade, factory-fitted hydraulic line for coupler, GPS machine tracker
• Telematics: Hi-MATE remote management system included
