Communication gateway 3200
securityindustrialIoT

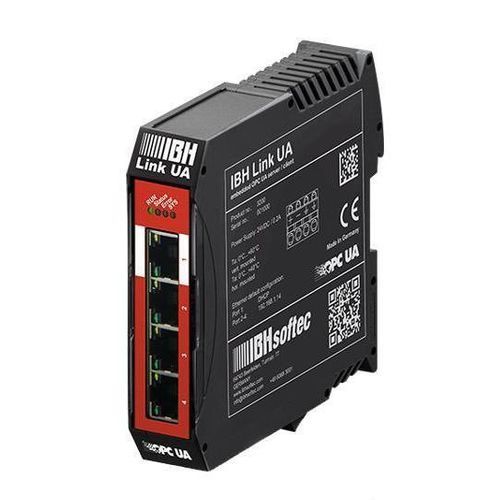

Communication gateway - 3200 - IBH Softec - security / industrial / IoT
Communication gateway - 3200 - IBH Softec - security / industrial / IoT
Communication gateway - 3200 - IBH Softec - security / industrial / IoT - image - 2
Add to favorites
Compare this product

Characteristics

Type
communication, industrial, IoT, security
Network
Ethernet TCP/IP, MQTT, Modbus
Other characteristics
DIN rail, multi-protocol, 4 ports, EDGE, OPC UA server

Description

IBH Link UA – OPC UA server/client for Industry 4.0 & IIoT

Embedded OPC UA gateway
  • Integrated firewall
  • MQTT with Sparkplug‑B support
  • Cloud connection capability


Use cases
  • Connection of Siemens SIMATIC S5/S7, Mitsubishi and Rockwell controllers
  • Integration with MES, ERP and SAP systems


Why IBH Link UA?
  • OPC UA Server & Client: Bidirectional data exchange between OPC UA servers from different manufacturers; includes historical data (OPC HDA) and Alarms & Conditions.


Safe separation
  • Four Ethernet ports separating process and control layers with integrated firewall
  • Scalable security through digital certificates


IIoT with MQTT & Sparkplug-B
  • Publisher/Subscriber architecture
  • Encrypted connections and certificate-based authentication
  • Industrial-grade data models via Sparkplug‑B


Edge & Cloud
  • Cloud connectivity: AWS, Microsoft Azure, IBM Watson IoT
  • Remote access via TeamViewer


Product details
Hardware variant
  • Single Core 32 Bit: 1 GHz, 512 MB RAM
  • Top-hat rail (DIN rail) mounting
  • 24 V power supply


Protocols & Interfaces
  • OPC UA (Server & Client)
  • OPC HDA; Alarms & Conditions
  • MQTT with Sparkplug‑B; Modbus; TCP/IP


Supported controllers
  • Siemens: SIMATIC S5/S7, LOGO!, SINUMERIK 840D/840D SL, SINUMERIK ONE
  • Mitsubishi: MELSEC iQ-R, FX5, QnA, L series, robots
  • Rockwell: ControlLogix, CompactLogix


Configuration & Administration
  • Configuration via the free IBH OPC UA Editor, Siemens STEP7 or TIA Portal
  • Web-based administration
  • Variable and namespace management; symbolic access to structures


Performance characteristics
  • OPC Foundation certified
  • Historical data (OPC HDA) and Alarms & Conditions
  • Modbus connectivity; freely definable address space
  • TeamViewer remote maintenance; NAGIOS monitoring


Technical specifications
  • Product no.: 3200
  • Brand: IBHsoftec
  • Model: IBH Link UA
  • Processor: Single Core 32 Bit, 1 GHz
  • Memory: 512 MB RAM
  • Mounting: Top-hat rail (DIN rail)
  • Power supply: 24 V
  • Network: Four Ethernet ports (process and control level)
  • Security: Integrated firewall; digital certificates
  • Protocols: OPC UA Server & Client, OPC HDA, MQTT (Sparkplug‑B), Modbus, TCP/IP
  • Cloud: AWS, Microsoft Azure, IBM Watson IoT
  • Remote access: TeamViewer
  • Configuration tools: IBH OPC UA Editor, Siemens STEP7, TIA Portal; web-based administration
  • Certification: OPC Foundation certified
