Communication gateway 3260

securityindustrialtelemetry

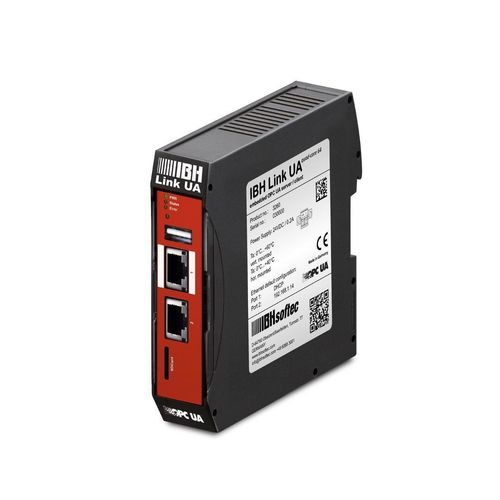

IBH Link UA – OPC UA server/client for Industry 4.0 & IIoT
Overview
Embedded OPC UA gateway with integrated firewall, MQTT (Sparkplug-B), Docker Edge and cloud connection. Designed for secure, bidirectional data exchange between PLCs, MES, ERP and cloud services in industrial environments.

Why IBH Link UA?

• OPC UA Server & Client: Bidirectional data exchange between OPC UA servers from different manufacturers. Historical data support (OPC HDA) and Alarms & Conditions included.
• Network separation and security: Two 1 Gbit Ethernet ports for process and control levels with integrated firewall. Scalable security using digital certificates and GDS.

IIoT with MQTT & Sparkplug-B

• Publisher/Subscriber model for efficient telemetry
• Encrypted connections and certificate-based security
• User authentication and industrial data models using Sparkplug-B

Edge & Cloud

• Docker containers for custom IoT edge deployments
• Direct cloud connectors to major providers
• TeamViewer support for secure remote access and maintenance

Product details

• Hardware variants: Quad Core 64 Bit: 1.8 GHz, 4 GB RAM, SD card support for extensions (cloud, Docker)
• Quad Core 32 Bit: 1.0 GHz, 2 GB RAM
• DIN-rail (top-hat) mounting, 24 V power supply

Protocols & Interfaces

• OPC UA (server & client), OPC HDA, Alarms & Conditions
• MQTT with Sparkplug-B, Modbus, TCP/IP
• GDS (client/server) for certificate management

Supported controllers

• Siemens: SIMATIC S5/S7, LOGO!, SINUMERIK 840D/840D SL, SINUMERIK ONE
• Mitsubishi: MELSEC IQR, FX5, QnA, L series, robots
• Rockwell: ControlLogix, CompactLogix

Configuration & Administration

• Configuration via the free IBH OPC UA Editor, Siemens STEP7 or TIA Portal
• Administration via standard web browser
• Variable and namespace management with symbolic access to structures

Performance characteristics

• OPC Foundation certified
• UL certified
• Support for historical data (OPC HDA)
• Alarms & Conditions handling
• Modbus connectivity
• Freely definable address space
• TeamViewer remote maintenance
• GDS – Global Discovery Service (Server/Client)
• NAGIOS monitoring
• Python methods & accompanying specifications

Technical specifications

• Product no.: 3260
• Model / series: IBH Link UA
• Hardware variant (Quad Core 64 Bit): CPU 1.8 GHz, 4 GB RAM, SD card support for extensions
• Hardware variant (Quad Core 32 Bit): CPU 1.0 GHz, 2 GB RAM
• Mounting: DIN-rail (top-hat)
• Power supply: 24 V
• Network: Two 1 Gbit Ethernet ports with integrated firewall
• Protocols: OPC UA (server & client), OPC HDA, MQTT (Sparkplug-B), Modbus, TCP/IP
• Security: Digital certificates, GDS for certificate management, encrypted connections, user authentication
• Edge / Cloud: Docker containers, cloud connectivity options
• Remote access: TeamViewer
• Certifications: OPC Foundation certified, UL certified
