Communication gateway 3220

securityindustrialIoT

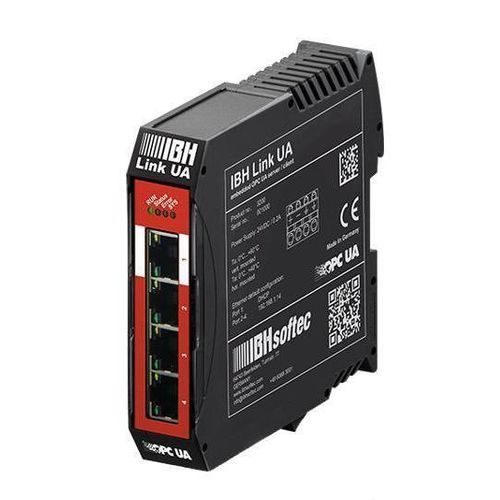

IBH Link UA 6 OPC UA server/client for Industry 4.0 & IIoT
Overview
Embedded OPC UA gateway with integrated firewall, MQTT (Sparkplug-B), Docker Edge and cloud connection. Ideal for connecting SIMATIC S5/S7, Mitsubishi and Rockwell controllers as well as MES, ERP and SAP systems.

Why IBH Link UA?

• OPC UA Server & Client: Bidirectional data exchange between OPC UA servers from different manufacturers. Historical data (OPC HDA) and Alarms & Conditions included.

Safe separation

• Four Ethernet ports for process and control level with integrated firewall.
• Scalable security levels via digital certificates and GDS.

IIoT with MQTT & Sparkplug-B

• Publisher/Subscriber
• Encrypted connections
• Certificate support
• User authentication
• Industrial-grade data models with Sparkplug-B

Edge & Cloud

• Docker containers for custom IoT edge projects
• Cloud connection to AWS, Microsoft Azure and IBM Watson IoT
• TeamViewer for remote access

Product details
Hardware variants

• Quad Core 64 Bit: 1.8 GHz, 4 GB RAM, SD card for extensions (Cloud, Docker)
• Quad Core 32 Bit: 1 GHz, 2 GB RAM
• Top-hat rail mounting, 24V power supply

Protocols & Interfaces

• OPC UA (Server & Client), OPC HDA, Alarms & Conditions
• MQTT with Sparkplug-B, Modbus, TCP/IP
• GDS (client/server) for certificate management

Supported controllers

• Siemens: SIMATIC S5/S7, LOGO!, SINUMERIK 840D/840D SL, SINUMERIK ONE
• Mitsubishi: MELSEC IQR, FX5, QnA, L series, robots
• Rockwell: ControlLogix, CompactLogix

Configuration & Administration

• Via the free IBH OPC UA Editor, Siemens STEP7 or TIA Portal
• Administration via web browser
• Variable and namespace management, symbolic access to structures

Performance characteristics

• Certified by the OPC Foundation
• Historical data (OPC HDA) and Alarms & Conditions
• Modbus connection and freely definable address space
• TeamViewer remote maintenance, GDS (Server/Client), NAGIOS Monitoring
• Python Methods & Companion Specs support

Additional resources
Data Sheet available (product datasheet). More information available in the product documentation and knowledge base.

Technical specifications

• Product no.: 3220
• Model: IBH Link UA Quad Core
• Hardware variants: Quad Core 64 Bit 1.8 GHz (4 GB RAM, SD card), Quad Core 32 Bit 1 GHz (2 GB RAM)
• Power & mounting: 24V power supply, top-hat rail mounting
• Ethernet: Four Ethernet ports for separation of process and control level (integrated firewall)
• Security: Digital certificates, GDS support, encrypted connections
• Protocols: OPC UA (Server & Client), OPC HDA, MQTT (Sparkplug-B), Modbus, TCP/IP
• Cloud & Edge: Docker containers, cloud connections (AWS, Azure, IBM Watson IoT)
• Remote access & monitoring: TeamViewer, NAGIOS Monitoring
• Configuration: IBH OPC UA Editor, Siemens STEP7 / TIA Portal, web administration
• Certified: OPC Foundation certified
• Price (excl. VAT): 890.00 EUR
