Communication gateway 3240

securityindustrialIoT

Description

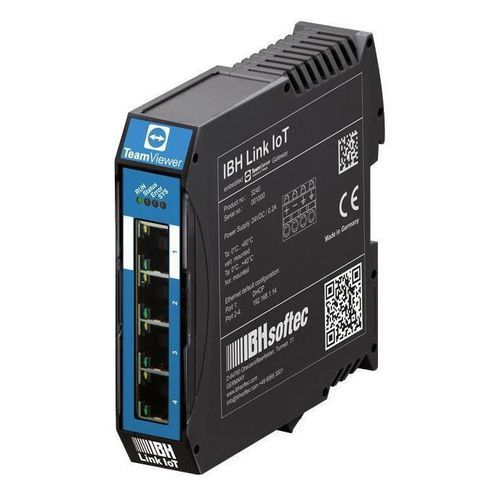

The IBH Link IoT module, together with TeamViewer, enables secure remote access to PLCs and their programming. It is a compact DIN-rail device with four Ethernet ports and a 24 V power supply, designed for industrial remote maintenance and service access.

Key benefits

• Pre-installed TeamViewer for secure remote access to a wide range of PLC systems
• Reduces the need for on-site maintenance interventions
• No PC required on site
• Encrypted connections ensure data security
• Simple configuration through a web interface
• Supports Ethernet-capable controllers via TCP and UDP protocols

Supported controllers / protocols (examples)

• S7 controllers (S7 TCP/IP or IBH Link S7++)
• S5 controllers (IBH Link S5++)
• SINUMERIK 840D / 840D SL
• Mitsubishi MELSEC IQR, FX5, QnA and L series
• Rockwell ControlLogix and CompactLogix
• Beckhoff TwinCAT
• B&R control systems
• Omron controllers

Additional information
TeamViewer support and tutorial resources are available for fast setup and operation.

Technical specifications

• Product no.: 3240
• Model: IBH Link IoT
• Manufacturer: IBHsoftec GmbH
• Mounting: DIN rail
• Ethernet ports: 4
• Power supply: 24 V
• Pre-installed software: TeamViewer
• Supported protocols: TCP, UDP
• Supported systems: S7 (S7 TCP/IP or IBH Link S7++), S5 (IBH Link S5++), SINUMERIK 840D/840D SL, Mitsubishi MELSEC IQR/FX5/QnA/L, Rockwell ControlLogix/CompactLogix, Beckhoff TwinCAT, B&R, Omron
• Configuration: web interface
• Security: encrypted data connections
• Price note: shown excl. VAT
