Stress analysis software module

calculationfor testfor bending

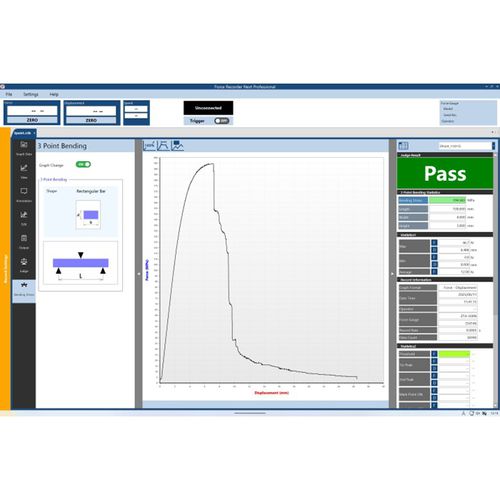

The Bending Stress Measurement Module is a plug-in for the Force Recorder Next Series. This function automatically calculates and displays ”Bending Stress" during bending tests for material strength design, performance evaluation, durability verification etc. Measurement data including bending stress can be output in report format and CSV format. Supported sample shapes are rectangular/square bars and round bars. Supported test methods are Three-point bending, Four-point bending, and Cantilever beam. *Download Card Basic is required. Feature ・Automatically calculates and displays bending stress from measured values. ・Supports three types of test methods: three-point bending, four-point bending, and cantilever beam. ・Bending stress and related parameters can be easily exported using dedicated report templates or in CSV format.
