Data acquisition and analysis software module Multi-Peak Extraction Function

for testsignal processingdata export

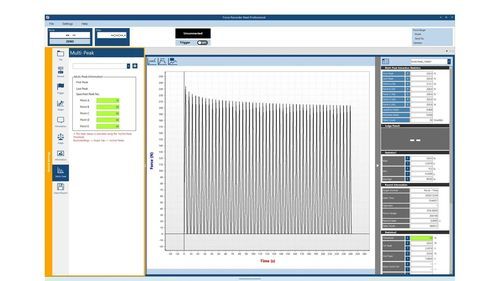

The Multi-Peak Extraction Function is a downloadable plug-in for the Force Recorder Next Series (IMADA) that extracts designated peak force information from measurement data to support fatigue analysis and identification of failure timing.

Key functions

• Allows users to designate and extract force values at specified peak points within measurement results (up to five designated points).
• Automatically outputs the force values of the first and last peaks and the total number of peaks detected across measurement data.
• Provides comparative metrics such as the ratio between minimum and maximum peak values to support evaluation of sample fatigue.
• Supports analysis to identify critical points (e.g., timing of sample failure) during repeated-load and endurance testing.
• Exports specified peak information via dedicated report templates or as CSV files for further analysis.

Additional notes

• This product is a downloadable paid plug-in; Download Card Basic is required to download and use this function.

Technical specifications

• Product type: Plug-in software (downloadable product)
• Compatibility: Force Recorder Next Series (IMADA)
• Peak designation: Up to 5 user-designated peaks
• Automatic outputs: First peak value, last peak value, total number of detected peaks
• Comparative outputs: Ratios and comparisons between peak values (e.g., min/max)
• Export formats: Dedicated report templates, CSV
• Requirement: Download Card Basic required to enable downloads and use
