Calculation software module

visualizationdata exportreporting

Overview

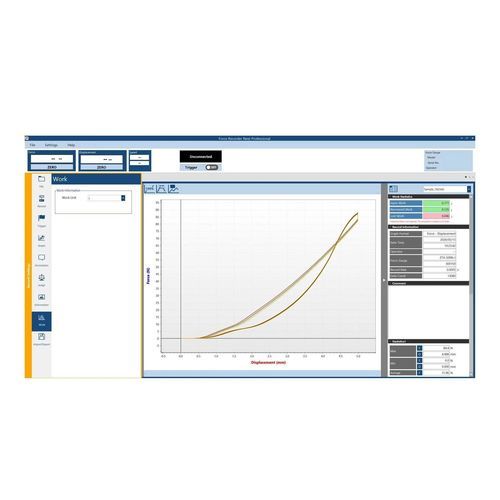

Work Calculation Module is a plug-in for the Force Recorder Next series. It automatically calculates and displays the area of the force–displacement graph (work) and the area of the force–time graph (impulse).

Product Type
Plug-in software; Downloadable product; Work Calculation function.

Notes
* A redemption code provided on the Download Card Basic is required to download/activate this function.
* This function cannot be added to the floating license versions of the Force Recorder Next series (Force Recorder Next Standard‑FLT and Force Recorder Next Professional‑FLT).

Features

• Automatically calculates and displays the area of the graph (work and impulse).
• Calculation unit selectable from [J], [mJ], [Nm·rad], or [F·s], depending on the measurement.
• For force–displacement graphs, three types of work are calculated: Input work (forward), Recovered work (return), and Lost work (the difference between input and recovered).
• Enables users to export calculated work values to reports and CSV files.

Compatibility
Designed as a plug‑in for the Force Recorder Next series graphing software.

Technical specifications

• Function type: Software plug-in for Force Recorder Next series
• Calculated outputs: Area of force–displacement graph (work), area of force–time graph (impulse)
• Work categories (force–displacement): Input work (forward), Recovered work (return), Lost work (difference)
• Selectable calculation units: J, mJ, Nm·rad, F·s
• Export formats supported: Report export, CSV export
• Activation: Requires redemption code from Download Card Basic
• License limitation: Not available for floating license versions (Standard‑FLT, Professional‑FLT)
