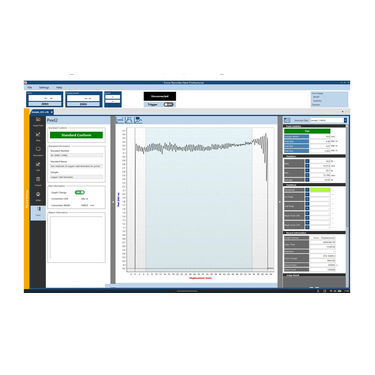

Data acquisition software module

for peel testsdata acquisition and analysismeasurement

Labels
Plug-in software
Downloadable product
Peel Test
Peel Strength

Description
The Peel Testing Module 2 is a downloadable plug-in for the Force Recorder Next series that converts measured force (N) into peel strength (e.g., N/mm) by using a preset sample width and selected conversion units. Built-in templates compliant with relevant standards are provided to streamline evaluation of electronic circuit materials and insulation adhesive tapes.

Notes
* A redemption code from the Download Card Advanced is required to download this function.
* Not compatible with floating license editions: Force Recorder Next Standard‑FLT and Force Recorder Next Professional‑FLT.

Feature

• Automatic conversion of measured load (N) to preset peel strength units (e.g., N/mm); sample width must be entered before measurement.
• Supports evaluation of printed wiring boards, flexible printed circuits, copper clad laminates, and electrical insulation adhesive tapes using built-in templates aligned with standards such as JIS and IEC.
• User-defined calculation ranges and conversion units can be saved as presets for quick switching between test conditions.
• Converted peel strength data can be exported as report files and CSV for analysis and record keeping.

Relevant information and materials
Product documentation and specification brochures are available as downloadable PDFs detailing additional functions of the downloadable Force Recorder Next series and related software.

Export / Output
Converted peel strength results can be exported as report files and CSV files for further analysis or archiving.

Usage / Requirements
This module is a downloadable add-on for Force Recorder Next series software. Prior purchase and a redemption code (Download Card Advanced) are required. The module cannot be added to floating license editions (Force Recorder Next Standard‑FLT, Force Recorder Next Professional‑FLT).

Technical specifications

• Product type: Downloadable software plug-in for Force Recorder Next series.
• Main function: Automatic conversion of measured force (N) to peel strength (e.g., N/mm) using preset sample width and conversion units.
• Standards support: Built-in templates for electronics materials testing standards (examples: JIS, IEC) targeting printed wiring boards, flexible printed circuits, copper clad laminates, and insulation adhesive tapes.
• User presets: Save and recall user-defined calculation ranges and conversion units.
• Data output: Exportable as report files and CSV.
• Distribution: Downloadable via IMADA connected download site; requires redemption code on Download Card Advanced.
• License limitation: Cannot be added to floating license versions (Force Recorder Next Standard‑FLT, Force Recorder Next Professional‑FLT).
