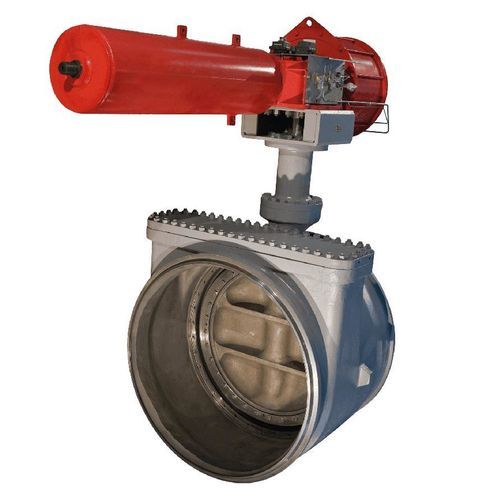

The IMI Orton MV Cryogenic Series is a triple eccentric metal-seated valve engineered for LNG, cryogenic and extreme low-temperature applications. Its precision triple-offset geometry eliminates seal friction to deliver zero-leakage bi-directional shutoff. Designed for temperatures from -254°C to +426°C and produced in stainless steel, the valve complies with ASME, API 609 and relevant ISO standards and provides metal-to-metal sealing for fire-safe operation. The anti-blowout shaft increases safety and reliability. Sizes and pressure ratings are referenced on the site, with ports from 2″ to 160″ and maximum working pressures referenced up to 150 bar and up to 430 barg depending on configuration.

Highlights

• Zero-leakage shutoff for critical LNG and cryogenic services.
• Triple-eccentric design eliminates seat friction and reduces wear.
• Metal-to-metal seating ensures fire-safe, high-pressure sealing.

Key features

• Size range: 2″–160″.
• Temperature range: -254°C to +426°C.
• Zero-leakage bi-directional shutoff (precision triple-offset geometry).
• Metal-to-metal seating for fire-safe operation.
• Anti-blowout shaft for enhanced safety and reliability.
• Standards: API 609; ASME B16.34; ASME VIII; relevant ISO standards.
• Maximum working pressure: referenced on site up to 150 bar and up to 430 barg depending on configuration.
• Applications: Liquefied Natural Gas (LNG), aerospace, industrial gas processing and other cryogenic uses.

Technical specifications

• Fluids: Liquefied Natural Gas (LNG); oxygen; hydrogen; cryogenic liquids; water.
• Port sizes: 2″ to 160″.
• Maximum working pressure (barg): 430 (site also references up to 150 bar in product text).
• Material: Stainless steel.
• Design codes: ASME B16.34; ASME VIII; API 609.
• Temperature limits: -254°C to +426°C.
• Certifications: PED; NACE; SIL3; CRN; ABS; DNV; LR; BV; CU-TR; API 607; API 641; ISO 15848; ISO 10497; NSF 61.
