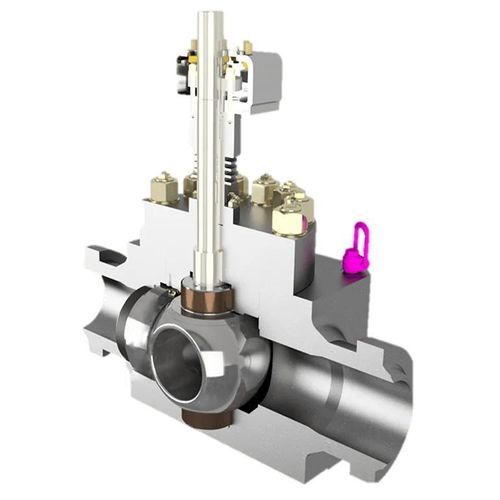

Ball valve O-Rex™pneumaticelectricregulating
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- pneumatic, electric
- Function
- regulating
- Media
- for hydrocarbons, for gas, for steam, for LNG
- Body
- soft-seat, double-offset
- Material
- stainless steel, carbon steel, alloy, titanium, nickel
- DN
Max.: 609.6 mm
(24 in)Min.: 25.4 mm
(1 in)- Pressure
Max.: 430 bar
(6,236.6 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 600 °C
(1,112 °F)Min.: -254 °C
(-425 °F)
Description
Product overview
The O-Rex™ Double Eccentric Ball Valve is engineered for severe-service industrial applications requiring low actuation torque, extended maintenance intervals and reliable bi-directional shutoff. It combines the stability of a trunnion-mounted ball design with a double-eccentric motion and a cavity-free body to prevent pressure entrapment. Hard-faced coatings and high-endurance bearings reduce wear and maintenance. Suitable for critical sectors including oil & gas, LNG, hydrogen and petrochemical processing.
Key features
Specifications
Fluid Types: Hydrogen; PTA; Multi-Phase Fluid; Steam; Hydrocarbons; Liquified Natural Gas (LNG); Gas
Port Size (inches): 1 to 24
Maximum Working Pressure (barg): 430
Material: Carbon Steel; Stainless Steel; Low Alloy Steel; Nickel Alloy Steel; Duplex & Super Duplex; Titanium
Design Codes: ASME B16.34; API 6D; ASME VIII Div.1; ASME VIII Div.2
Temperature Limits (°C): -254 to 600
Certification: PED; NACE; SIL3; CRN; ABS; DNV; LR; BV; CU-TR; API 607; API 6FA; ISO 15848; ISO 10497
Technical data
The O-Rex™ Double Eccentric Ball Valve is engineered for severe-service industrial applications requiring low actuation torque, extended maintenance intervals and reliable bi-directional shutoff. It combines the stability of a trunnion-mounted ball design with a double-eccentric motion and a cavity-free body to prevent pressure entrapment. Hard-faced coatings and high-endurance bearings reduce wear and maintenance. Suitable for critical sectors including oil & gas, LNG, hydrogen and petrochemical processing.
Key features
- Cavity-free design prevents pressure build-up for sustained reliability.
- Double eccentric motion minimizes friction for smooth operation.
- Torque-seated mechanism ensures bi-directional tight shutoff.
- Maximum working pressure up to 430 barg.
- Side or top entry access for maintenance.
- Available port sizes from 1" to 24".
- Metal or soft seat options.
- Class ratings from 150 to 450.
- Suitable for On/Off and Modulating service.
- Applications: LNG, refining, steam and hydrogen.
- Operating temperature range: -254°C to +600°C.
Specifications
Fluid Types: Hydrogen; PTA; Multi-Phase Fluid; Steam; Hydrocarbons; Liquified Natural Gas (LNG); Gas
Port Size (inches): 1 to 24
Maximum Working Pressure (barg): 430
Material: Carbon Steel; Stainless Steel; Low Alloy Steel; Nickel Alloy Steel; Duplex & Super Duplex; Titanium
Design Codes: ASME B16.34; API 6D; ASME VIII Div.1; ASME VIII Div.2
Temperature Limits (°C): -254 to 600
Certification: PED; NACE; SIL3; CRN; ABS; DNV; LR; BV; CU-TR; API 607; API 6FA; ISO 15848; ISO 10497
Technical data
- Model: O-Rex™
- Manufacturer / Brand: IMI Truflo Italy
- Maximum working pressure: 430 barg
- Port size range: 1" to 24"
- Materials available: Carbon Steel, Stainless Steel, Low Alloy Steel, Nickel Alloy Steel, Duplex & Super Duplex, Titanium
- Seat options: Metal seat or Soft seat
- Class ratings: 150 – 450
- Service types: On/Off & Modulating
- Applicable fluids: Hydrogen, PTA, Multi-phase fluids, Steam, Hydrocarbons, LNG, Gas
- Temperature range: -254°C to +600°C
- Design & compliance codes: ASME B16.34, API 6D, ASME VIII Div.1, ASME VIII Div.2
- Certifications: PED, NACE, SIL3, CRN, ABS, DNV, LR, BV, CU-TR, API 607, API 6FA, ISO 15848, ISO 10497
