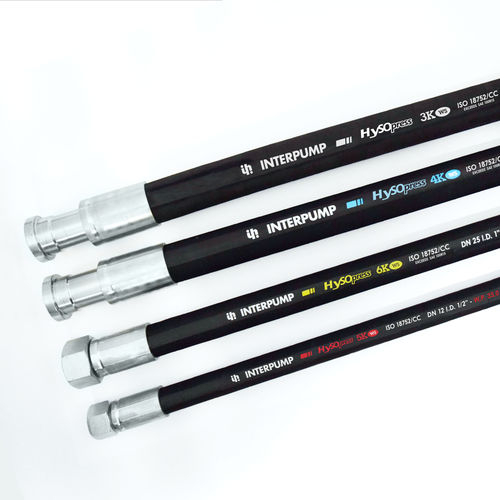

Water hose TI seriesfor oilsynthetic rubberindustrial
Add to favorites
Compare this product
Characteristics
- Use
- for water, for oil
- Material
- synthetic rubber
- Applications
- industrial
- Other characteristics
- braided, spiral, wire-braided
- Inner diameter
Min.: 6.4 mm
(0.252 in)Max.: 50.8 mm
(2 in)- Outer diameter
Min.: 12.3 mm
(0.484 in)Max.: 66.3 mm
(2.61 in)- Pressure
Min.: 210 bar
(3,045.792 psi)Max.: 1,680 bar
(24,366.34 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)
Description
The Hysobaric Line, available in four pressure levels (3K, 4K, 5K, and 6K psi) and sizes ranging from ¼” to 2”, with both braided and spiral constructions, is designed to meet the needs of those seeking superior quality hoses that are reliable across multiple applications.
In sectors such as Earth Moving, Agriculture, Material Handling, or Drilling, you can choose the size and working pressure that best suits your requirements, while we ensure the same exceptional reliability, compactness, lightness, and flexibility in every option.
